Fastener Tightening Specifications

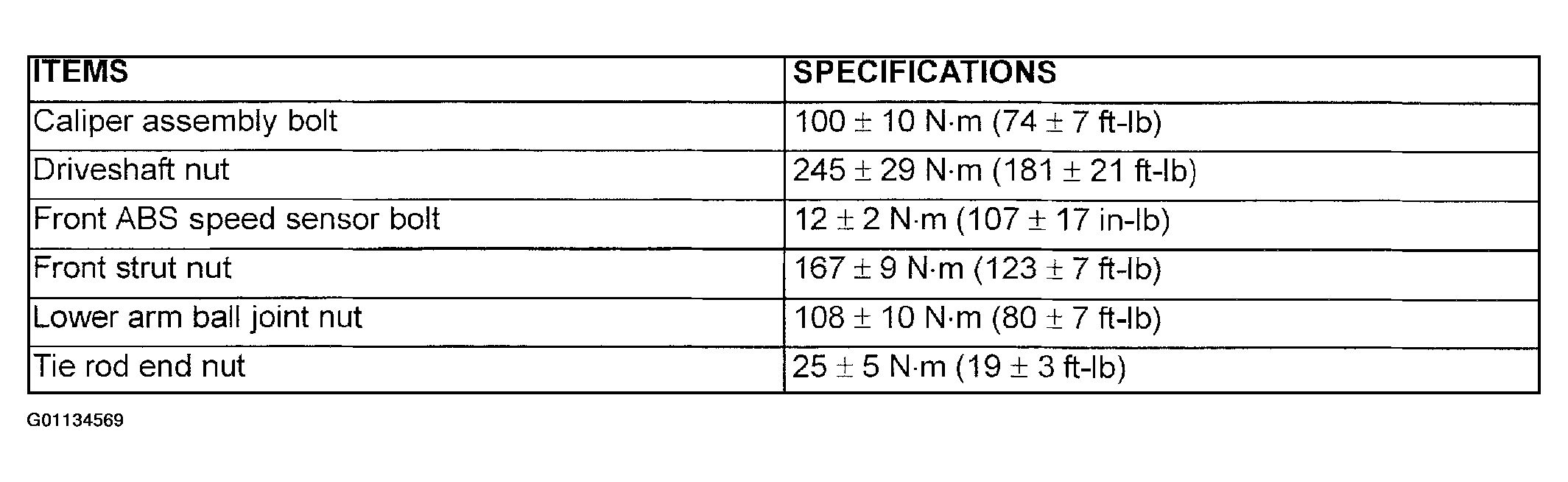

Fig 1: Torque Specifications Table (Front Axle & Hub)
G01134569Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

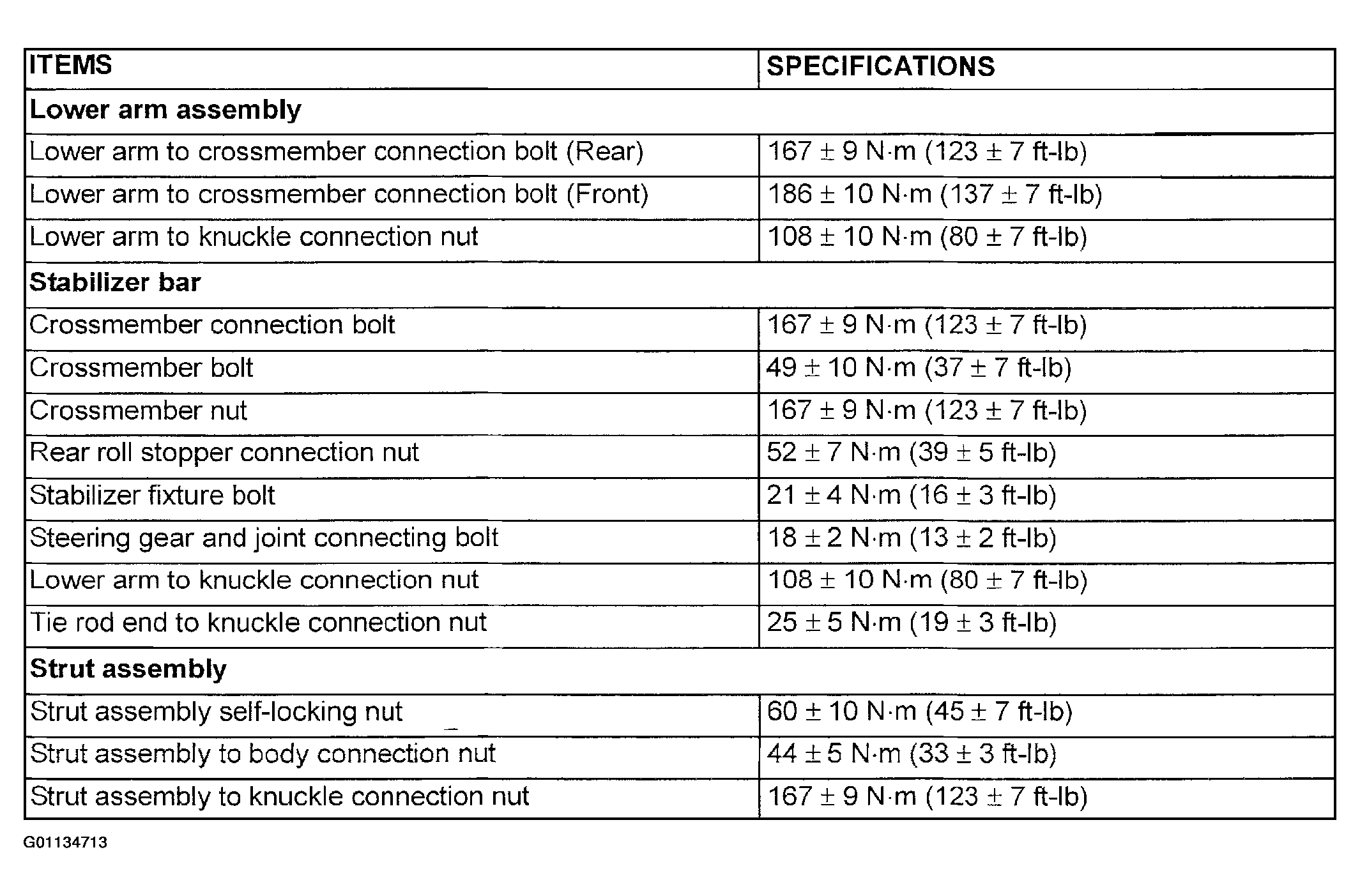

Fig 2: Torque Specifications Table (Front Suspension)
G01134713Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
