Service Specifications

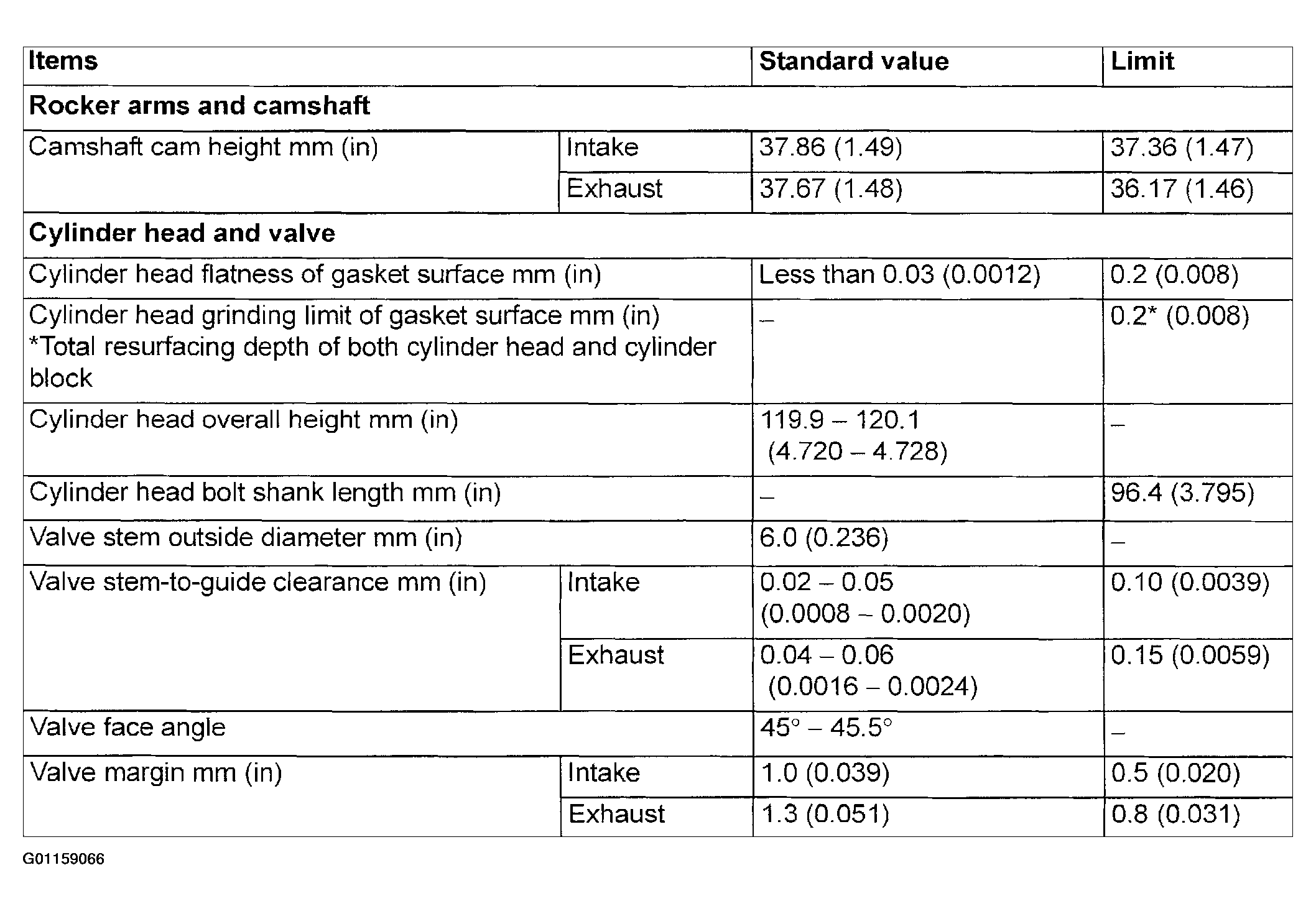

Fig 1: Identifying Service Specifications (1 Of 3)
G01159066Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

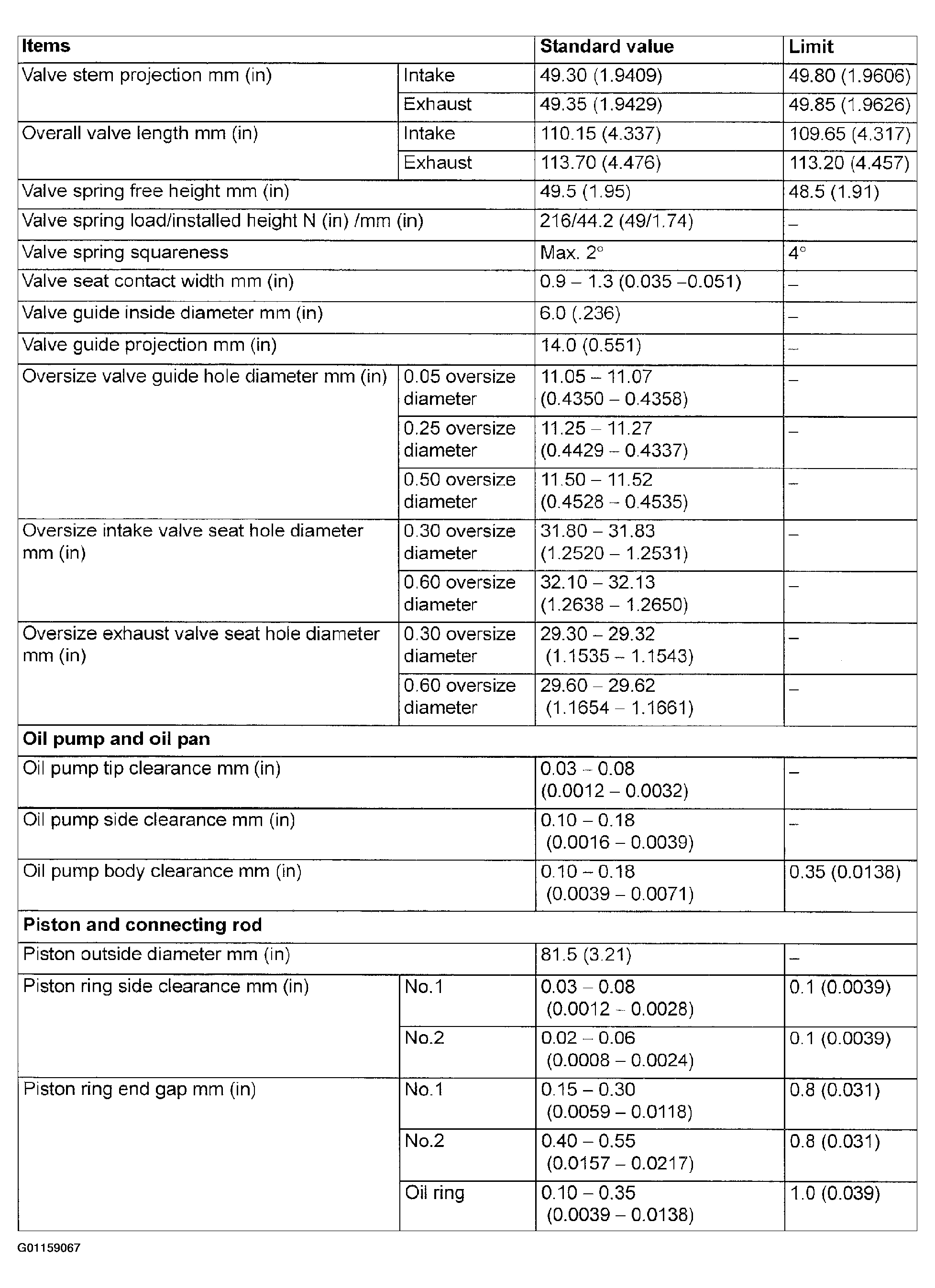

Fig 2: Identifying Service Specifications (2 Of 3)
G01159067Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

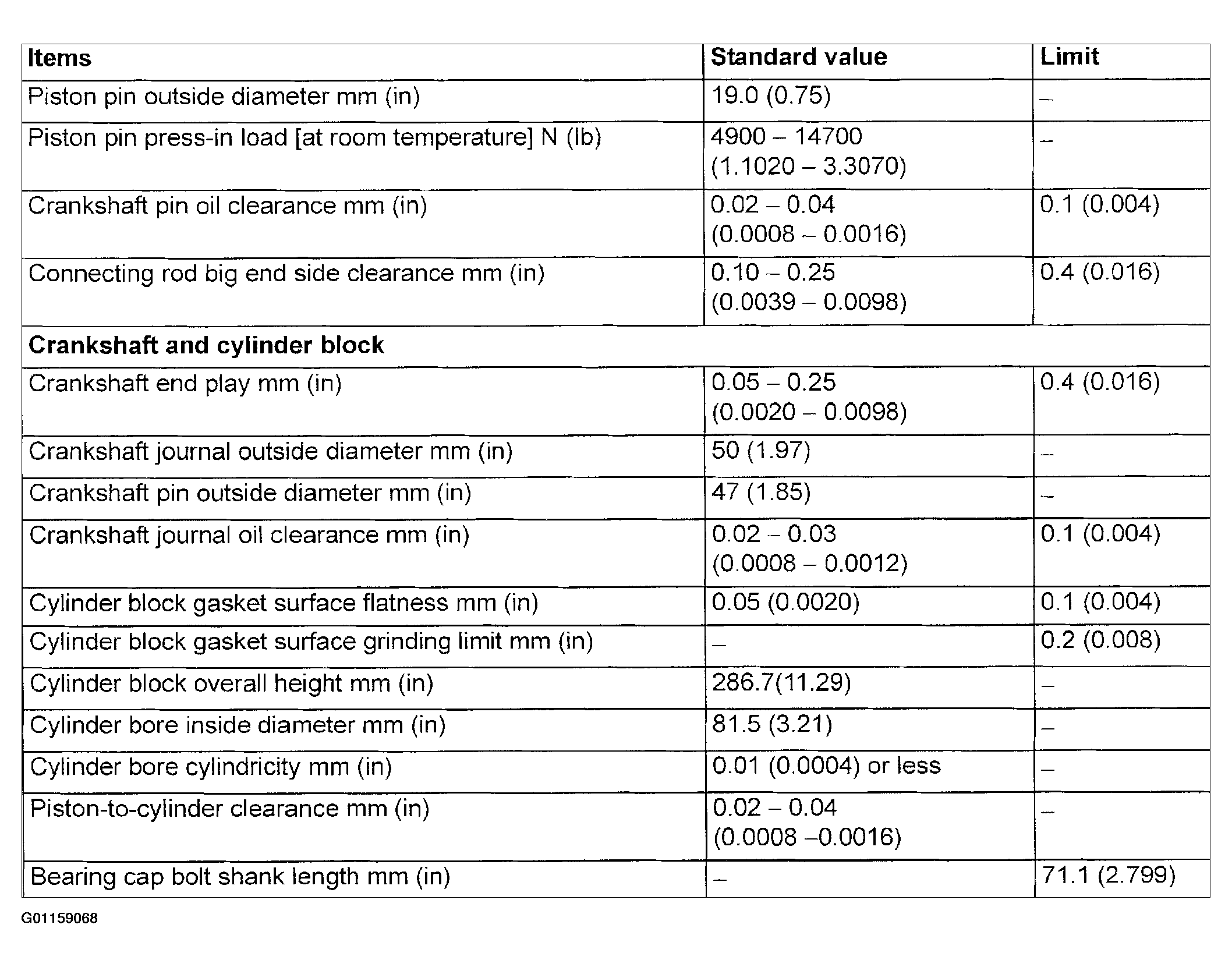

Fig 3: Identifying Service Specifications (3 Of 3)
G01159068Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
