Power Seat Switch Continuity Check

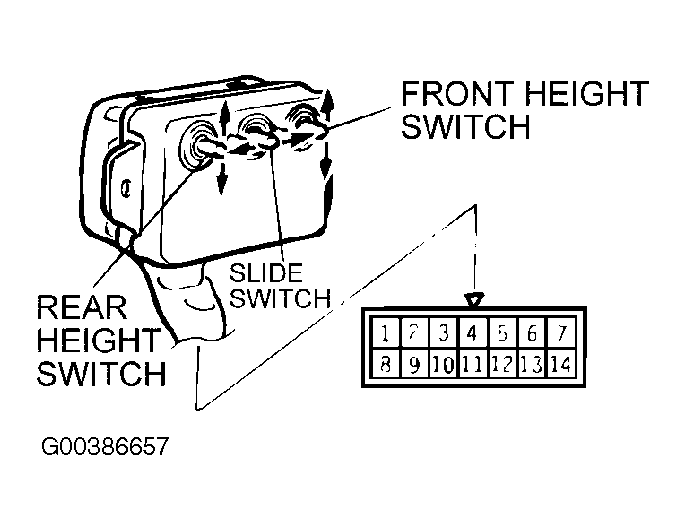

Fig 1: Identifying Power Seat Switch Terminals
G00386657Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

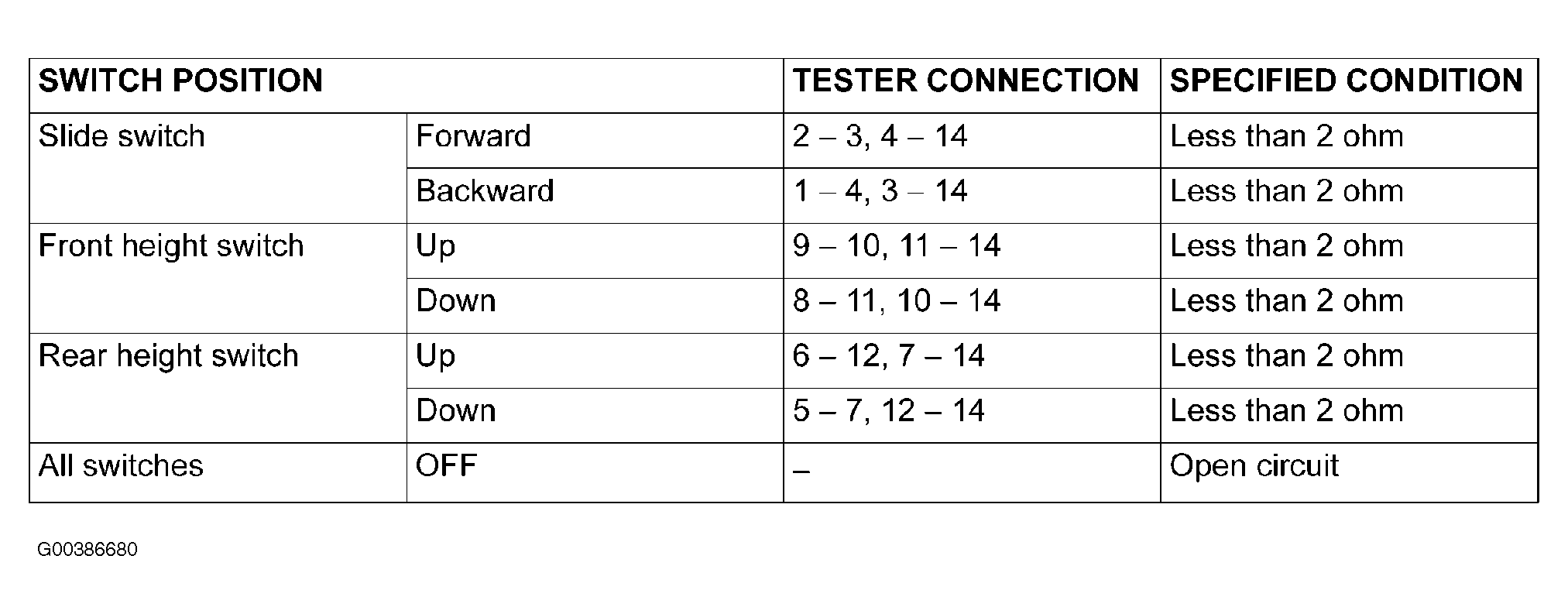

Fig 2: Power Seat Switch Continuity
G00386680Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
