Removal And Installation: Notes

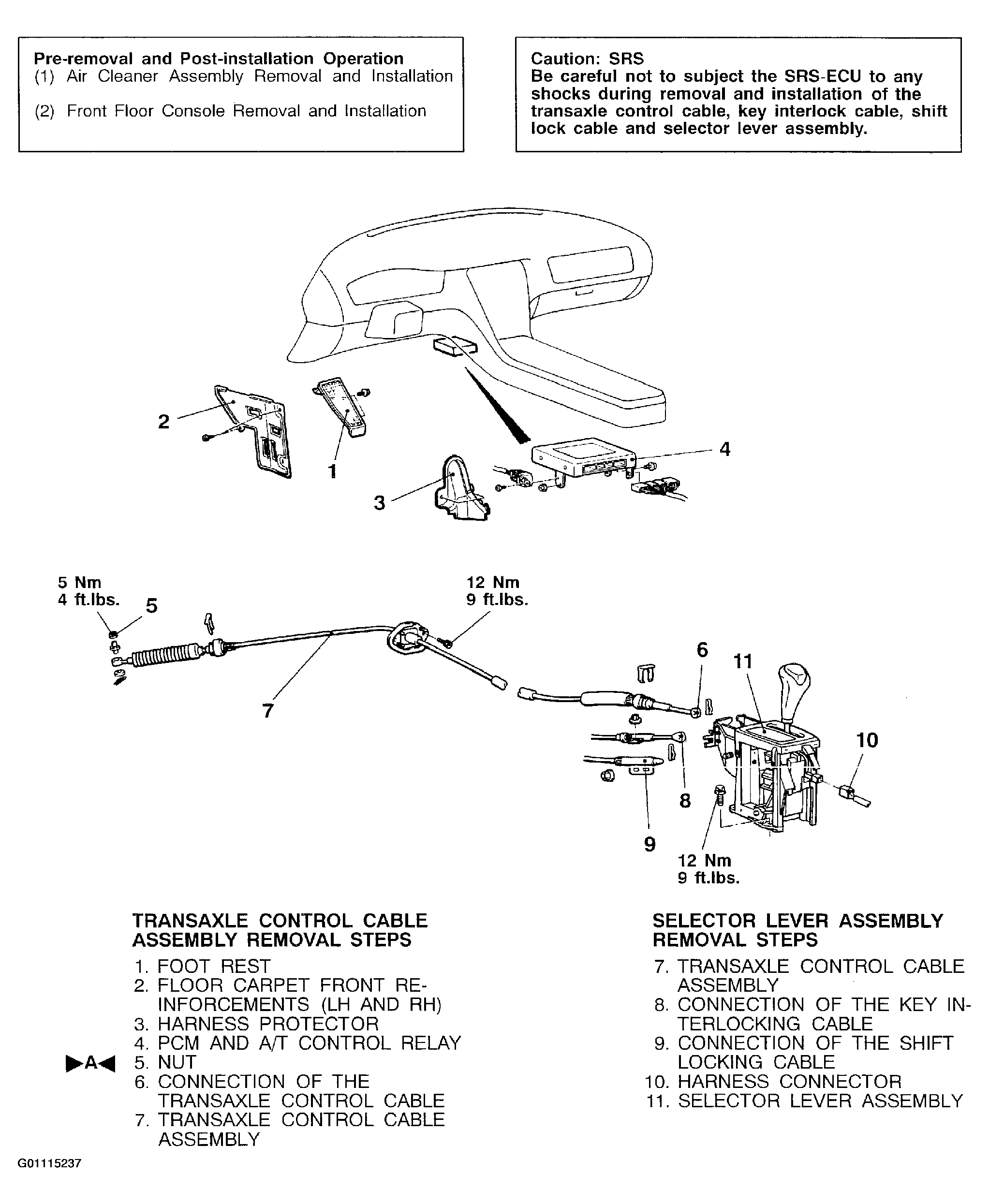

Fig 1: Removing & Installing Transaxle Control
G01115237Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
