A/T Control Component Check

Refer to CRANKSHAFT POSITION (CKP) SENSOR .

Refer to THROTTLE POSITION (TP) SENSOR .

1. Remove the oil temperature sensor.
2. Measure the resistance between terminals No. 1 and No. 2 of the oil temperature sensor connector.

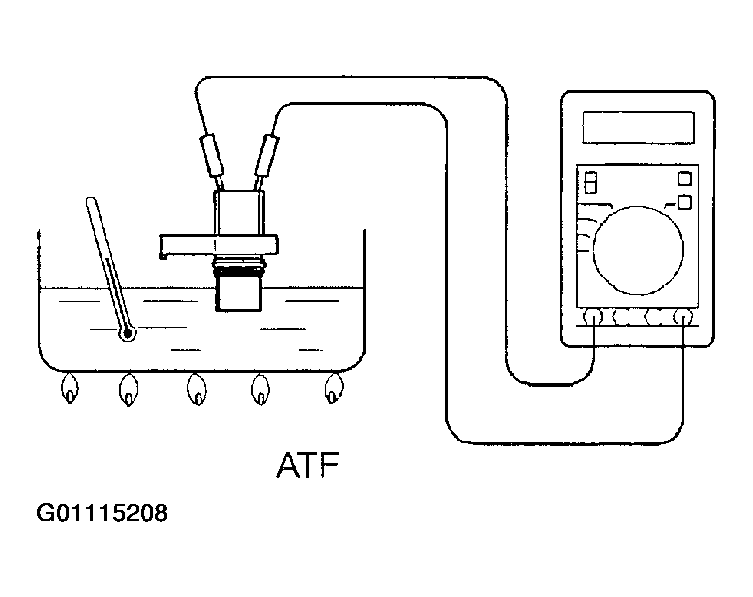

   Fig 1: Measuring Oil Temperature Sensor Resistance

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   1. Standard value:

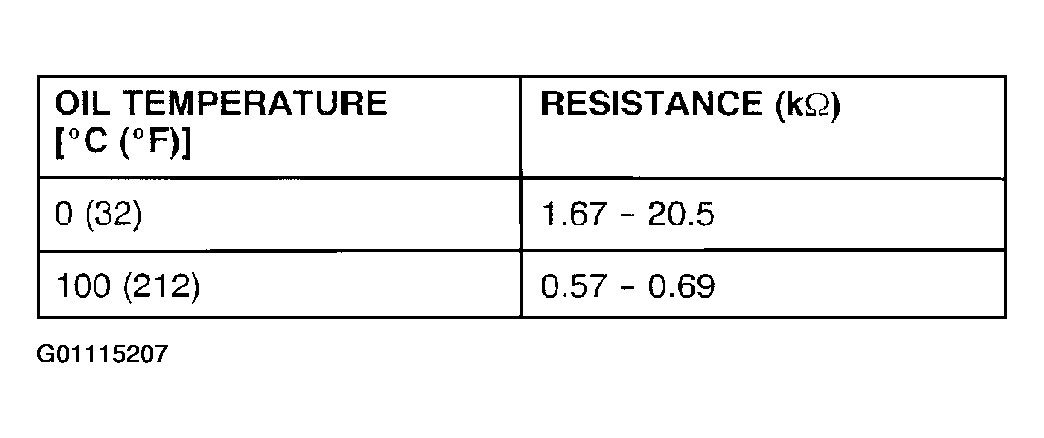

      Fig 2: Oil temperature/Resistance Chart

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Replace the sensor if not within the standard value.

Refer to PARK/NEUTRAL POSITION SWITCH CONTINUITY CHECK  .

Refer to STOPLIGHT SWITCH .

Refer to ON-VEHICLE SERVICE .

Refer to ON-VEHICLE SERVICE .

Refer to CLOSED THROTTLE POSITION SWITCH .

1. Remove the A/T control relay.
2. Use jumper wires to connect the A/T control relay terminal (2) to the battery (-) terminal and terminal (4) to the battery (+) terminal.

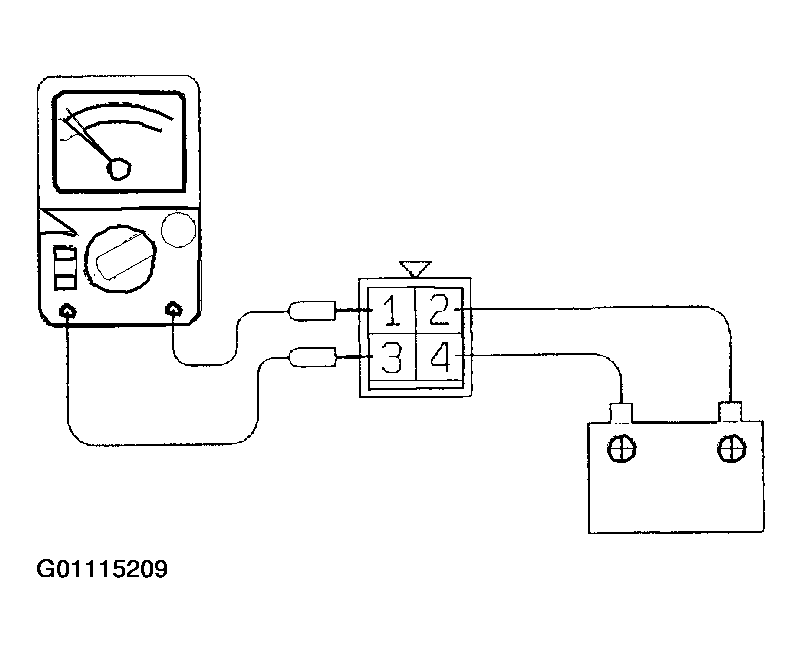

   Fig 3: Checking A/T Control Relay

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check the continuity between the terminal (1) and the terminal (3) of the A/T control relay when the jumper wires are connected to and disconnected from the battery.

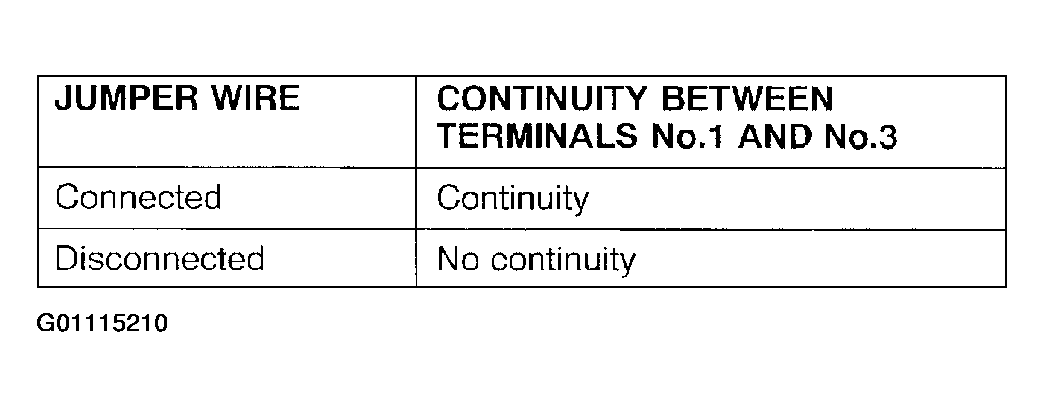

   Fig 4: A/T Control Relay Continuity

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. If there is a problem, replace the A/T control relay.

1. Remove the valve body cover.
2. Disconnect the connectors of each solenoid valve.

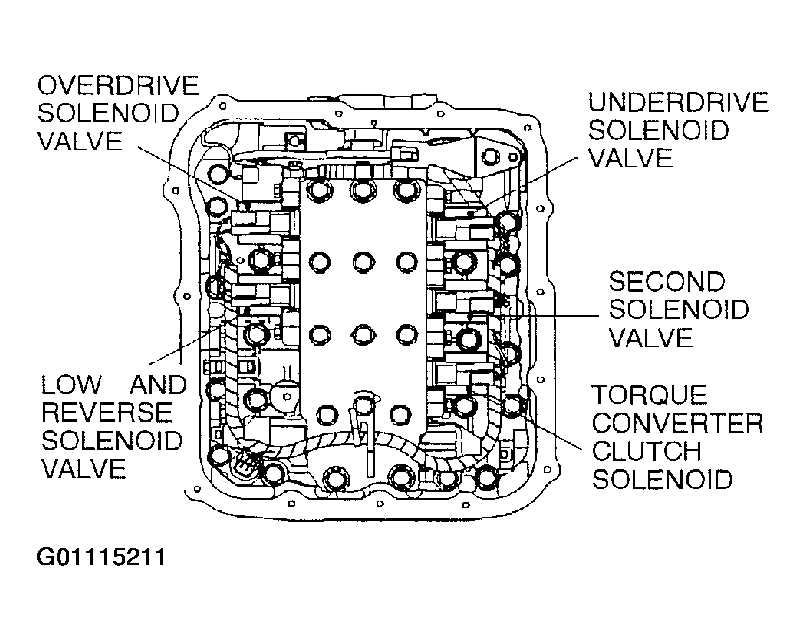

   Fig 5: Identifying Solenoid Valves

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Measure the resistance between terminals 1 and 2 of each solenoid valve.

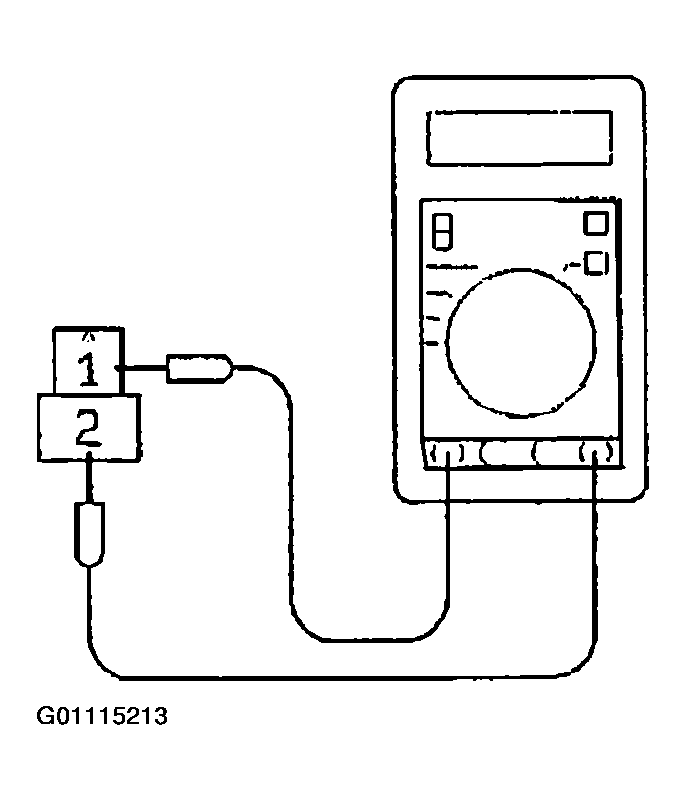

   Fig 6: Testing Solenoid Valves

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   1. Standard value:

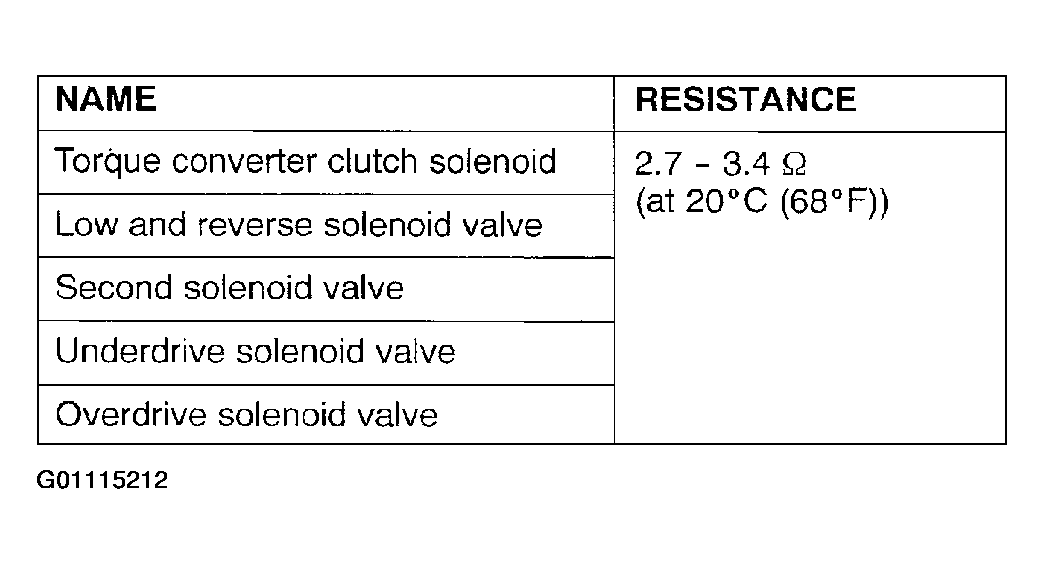

      Fig 7: Solenoid Valve Resistance Specification

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. If the resistance is not within the standard value, replace the solenoid valve.
