Power Window Switch Continuity Check
>>
Sub Switch
Sub Switch

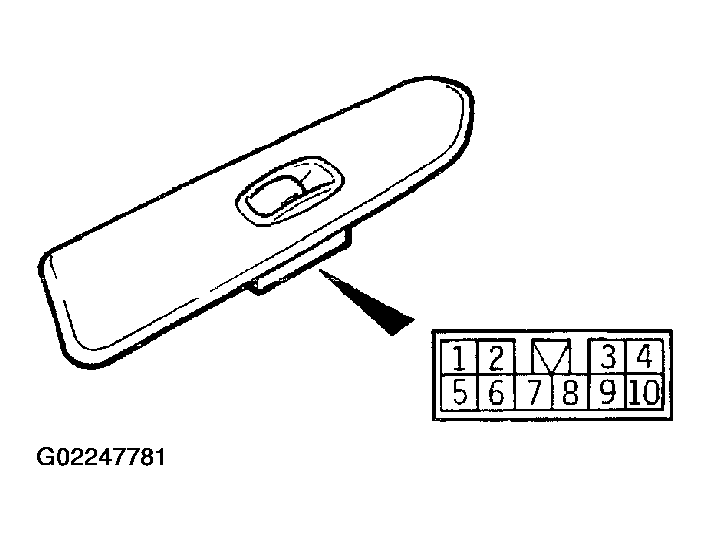

Fig 1: Identifying Power Window Sub Switch Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

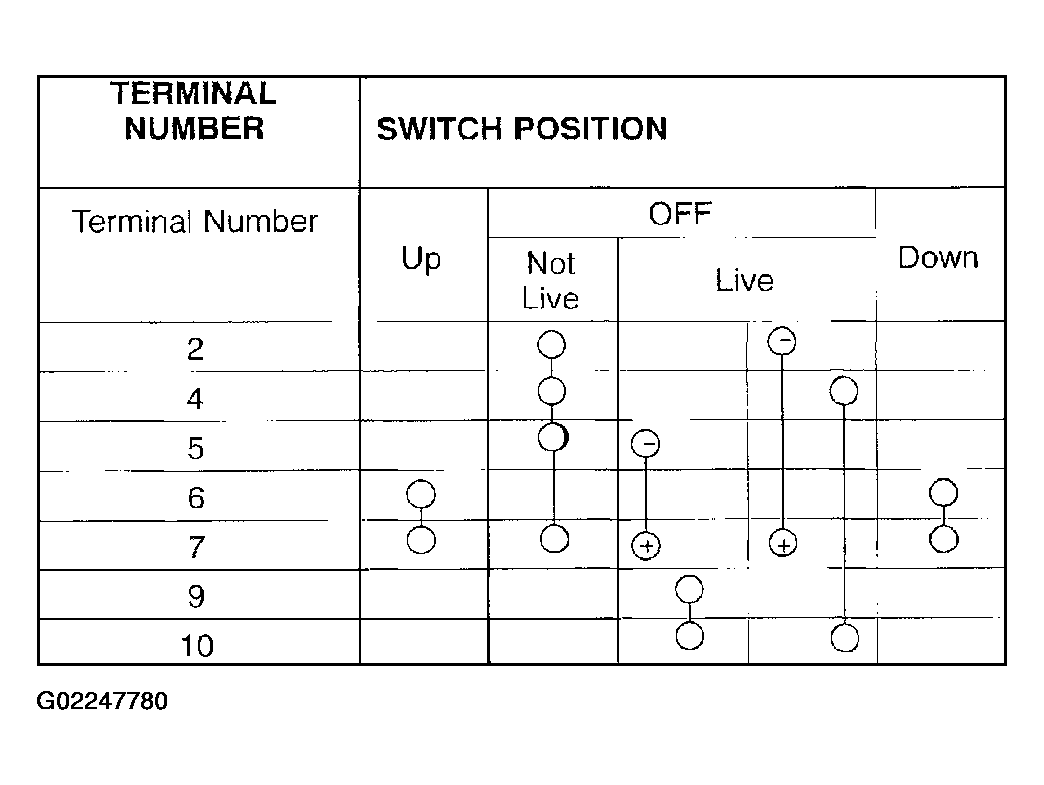

Fig 2: Power Window Sub Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
