Front Suspension: Description

Independent front suspension uses double wishbone construction with torsion bar. Components used with this system include upper control arm, lower control arm, shock absorber, stabilizer bar and steering knuckle. See Fig 1.

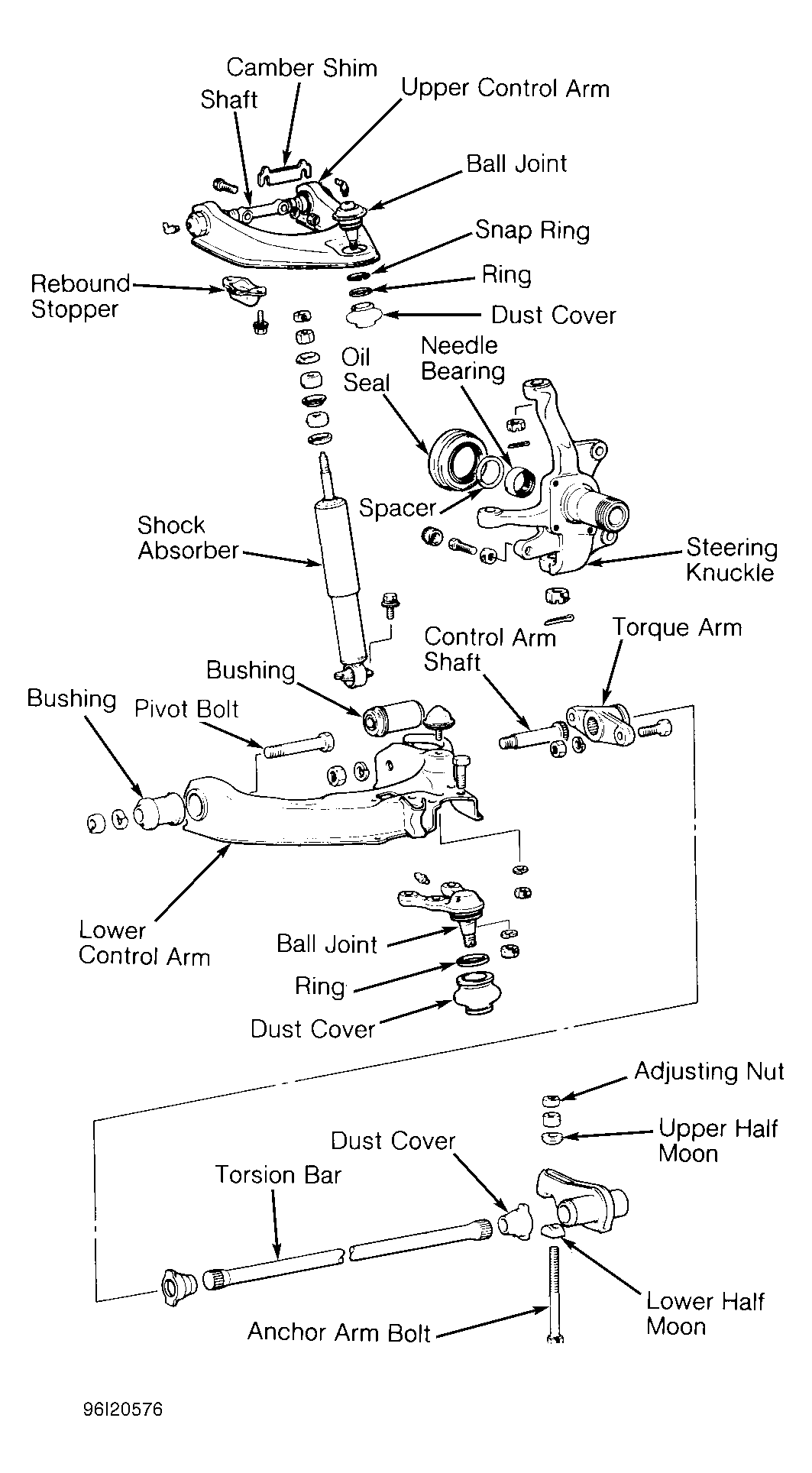

Fig 1: Exploded View Of 4WD Front Suspension (Montero Shown; Montero Sport Similar)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
