Door Lock Switch: Sub-Switch

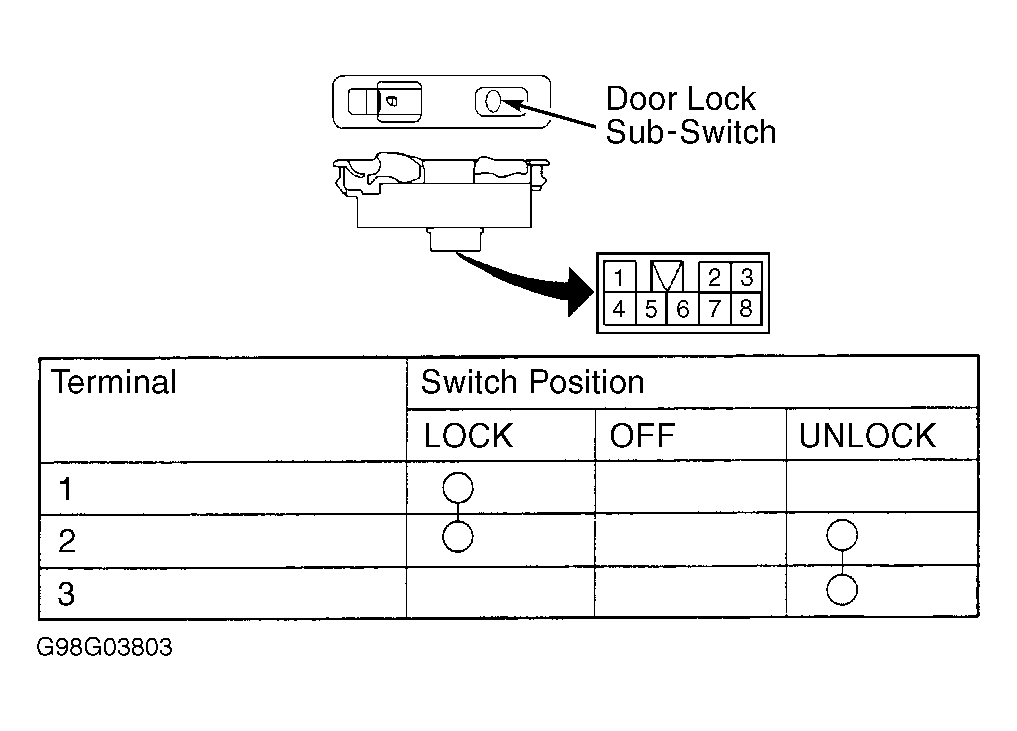

- Remove switch from door. Set door switch in LOCK position. Continuity should be present between switch terminals No. 1 (Black/Red wire) and No. 2 (Black wire). See Fig 1
. Repair as necessary. If continuity is present, go to next step.
- Set door lock switch in UNLOCK position. Continuity should be present between switch terminals No. 2 (Black wire) and No. 3 (Black/Blue wire). Repair as necessary. If continuity is present, go to next step.
- Set door lock switch in OFF position. Continuity should not be present in any terminals. Replace door lock switch if continuity is not as specified.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
