Power Seat Switch

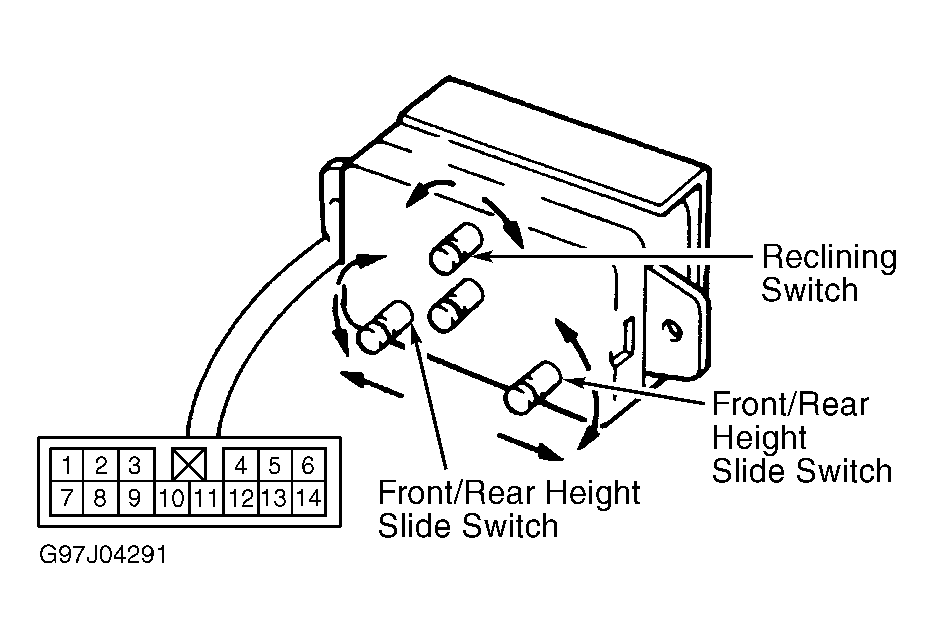

Disconnect power seat switch harness connector. Using ohmmeter, check continuity of switch at specified terminals. See POWER SEAT SWITCH CONTINUITY table. See Fig 1 . Replace switch if continuity is not as specified.
POWER SEAT SWITCH CONTINUITY
| Switch Position | Check Continuity Between Terminals No. | |
|---|---|---|
| Front Height Switch | ||
| UP | 1 & 10; 2 & 14 | |
| DOWN | 1 & 14; 2 & 10 | |
| Rear Height Switch | ||
| UP | 5 & 14; 6 & 11 | |
| DOWN | 5 & 12; 6 & 14 | |
| Slide Switch | ||
| Forward | 7 & 13; 8 & 14 | |
| Backward | 7 & 14; 8 & 13 | |
| Reclining Switch | ||
| Forward | 3 & 14; 4 & 13 | |
| Backward | 3 & 13; 4 & 14 | |
| All Switches Off | No Continuity, All Terminals | |
