Cruise Control Switch Function Test

NOTE: If vehicle speed decreases about 9 MPH below set speed, set speed will be canceled. Speed will not set beyond cruise control system limit of 124 MPH.

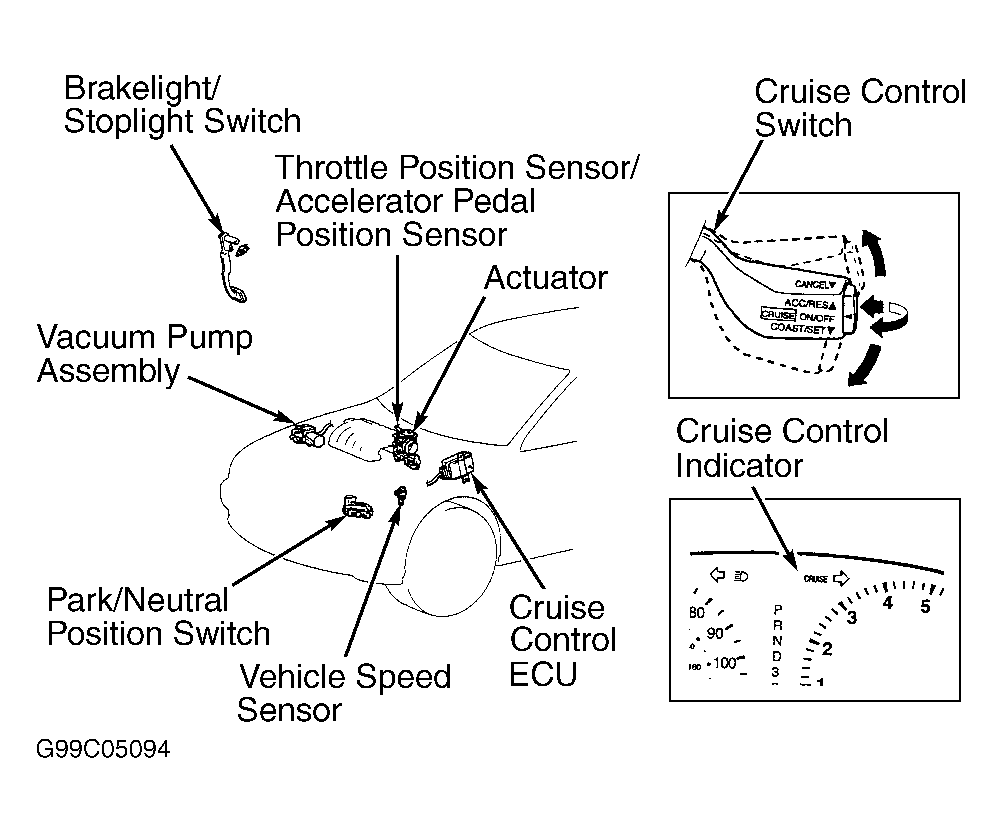

  1. Cruise control switch is part of multifunction switch mounted on steering column. To operate cruise control system, turn cruise control main switch on by pushing in on end of stalk. Ensure indicator light on dash comes on. See Figure .
  2. Drive vehicle to about 25 MPH or greater. Move multifunction switch lever down and release to activate COAST/SET mode. Vehicle speed should stay at set speed. To increase set speed, move lever up to activate ACC/RES mode and hold until new set speed is reached.
  3. To lower set speed, move lever down to activate COAST/SET mode and hold until new set speed is reached. To return to set speed after cancellation, move lever up to ACC/RES position. Vehicle speed should return to previous setting before cancellation. Set speed should cancel when any of the following occurs:
    • Brake pedal is depressed.
    • Cruise control CANCEL switch is activated.
    • Cruise control main switch is turned to OFF position.
    • Ignition switch is turned to OFF position.
    • Transmission is shifted to Neutral.
