Power Seat Switch

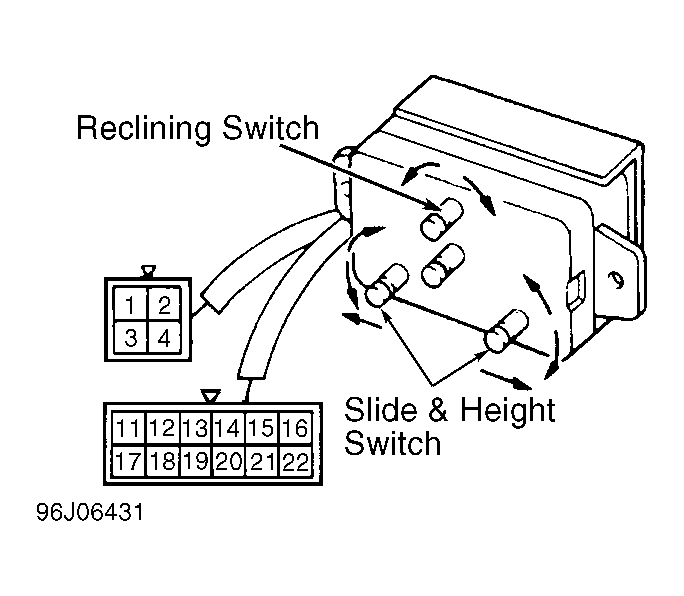

Disconnect power seat switch harness connector. Using ohmmeter, check continuity of switch. See POWER SEAT SWITCH CONTINUITY andFig 1 . Replace switch if continuity is not as specified.
POWER SEAT SWITCH CONTINUITY
| Switch Position | Check Continuity Between Pin No. | ||
|---|---|---|---|
| Driver's & Passenger's Seat | |||
| Front Height Switch | |||
| UP | 11 & 14; 13 & 22 | ||
| DOWN | 12 & 13; 14 & 22 | ||
| Rear Height Switch | |||
| UP | 17 & 18; 15 & 22 | ||
| DOWN | 15 & 19; 17 & 22 | ||
| Slide Switch | |||
| Forward | 1 & 4; 3 & 22 | ||
| Backward | 2 & 3; 4 & 22 | ||
| Reclining Switch | |||
| Forward | 16 & 21; 20 & 22 | ||
| Backward | 16 & 20; 21 & 22 | ||
| All Switches | |||
| Off | 1 & 4; 2 & 3; 11 & 14; 12 & 13; | ||
| " | 15 & 19; 16, 20 & 21; 17 & 18 | ||
