Driver's Seat

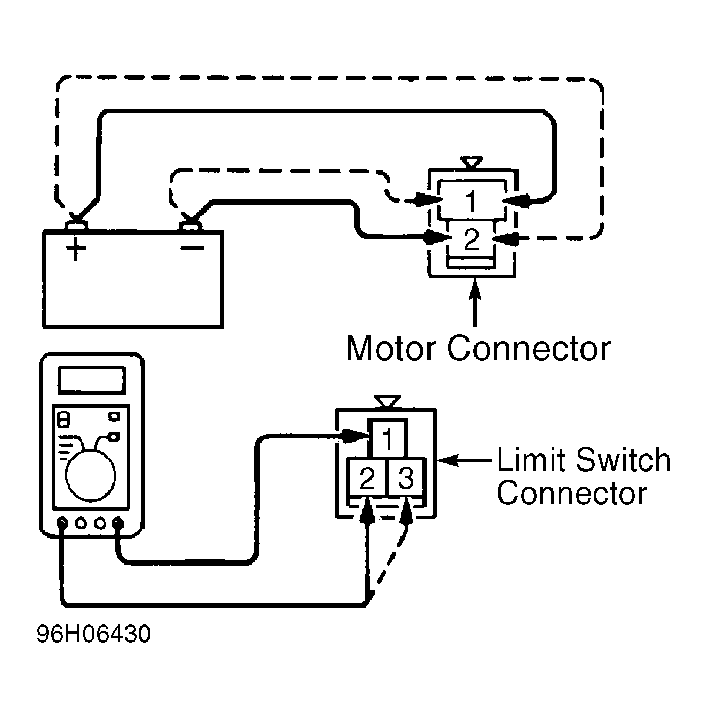

Disconnect each limit switch harness connector. Operate each switch to check continuity between terminals using ohmmeter. See LIMIT SWITCH CONTINUITY andFig 1 . Replace power seat adjuster assembly if any switch fails testing.
LIMIT SWITCH CONTINUITY
| Switch Position | Check Continuity Between Pin No. | |
|---|---|---|
| Slide Limit Switch | ||
| Forward | 1 & 2 | |
| Backward | 1 & 3 | |
| Middle (ON) | 1, 2 & 3 | |
| Front & Rear Height Limit Switch | ||
| Front Up | 1 & 3 | |
| Front Down | 1 & 2 | |
| Front Middle (ON) | 1, 2 & 3 | |
| Rear Up | 1 & 3 | |
| Rear Down | 1 & 2 | |
| Rear Middle (ON) | 1, 2 & 3 | |
