Pedal Stroke Sensor/BRAKELIGHT Switch

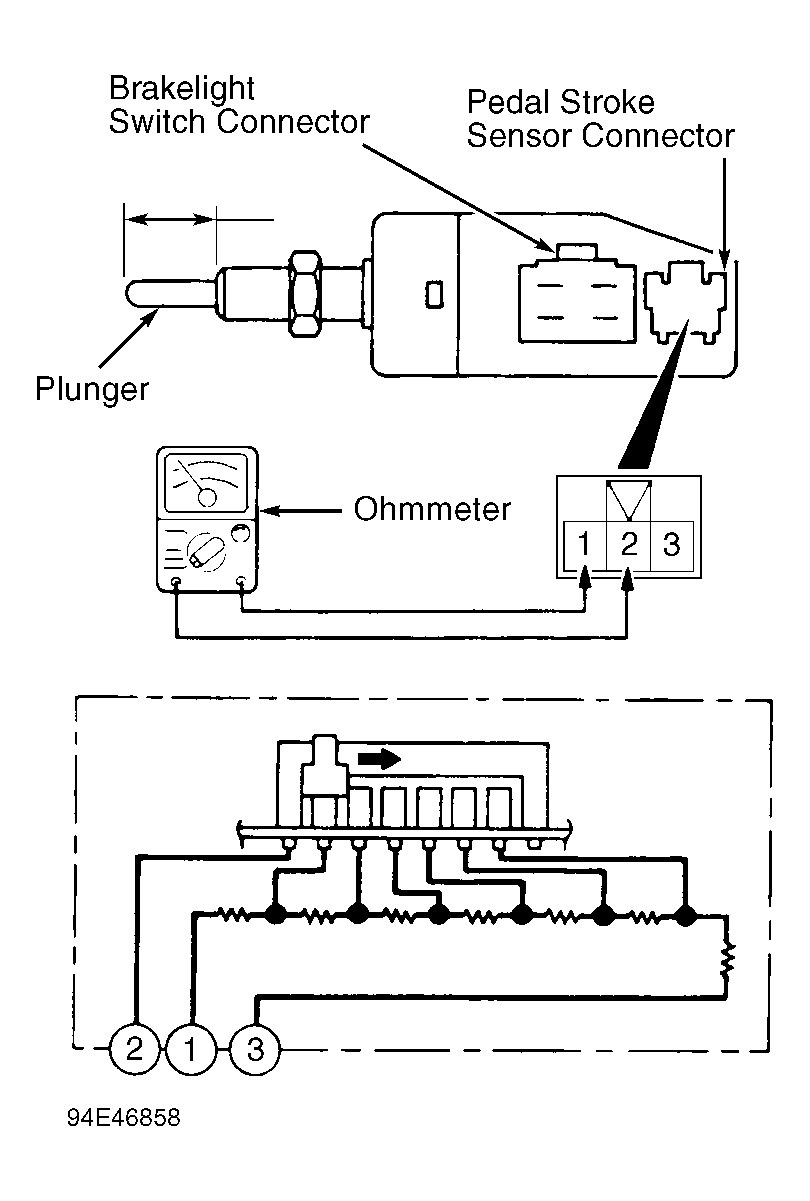

- Ensure plunger of sensor moves smoothly. Using ohmmeter, measure resistance of sensor in specified positions. See Figure . See PEDAL STROKE SENSOR RESISTANCE SPECIFICATIONS table. Replace sensor if resistance measurements are not within specification.
- Continuity should exist when brakelight switch plunger extended. No continuity should exist when plunger is depressed. Replace as needed.
PEDAL STROKE SENSOR RESISTANCE SPECIFICATIONS
| Plunger Position In. (mm) | Ohms |
|---|---|
| .14-.18 (3.5-4.5) | 237-261 |
| .26-.30 (6.7-7.7) | 414-458 |
| .39-.43 (9.8-1-.8) | 535-591 |
| .51-.55 (12.9-13.9) | 655-725 |
| .63-.67 (16-17) | 770-858 |
| .69-.73 (17.5-18.5) | 980-1084 |
