Using Scan Tester

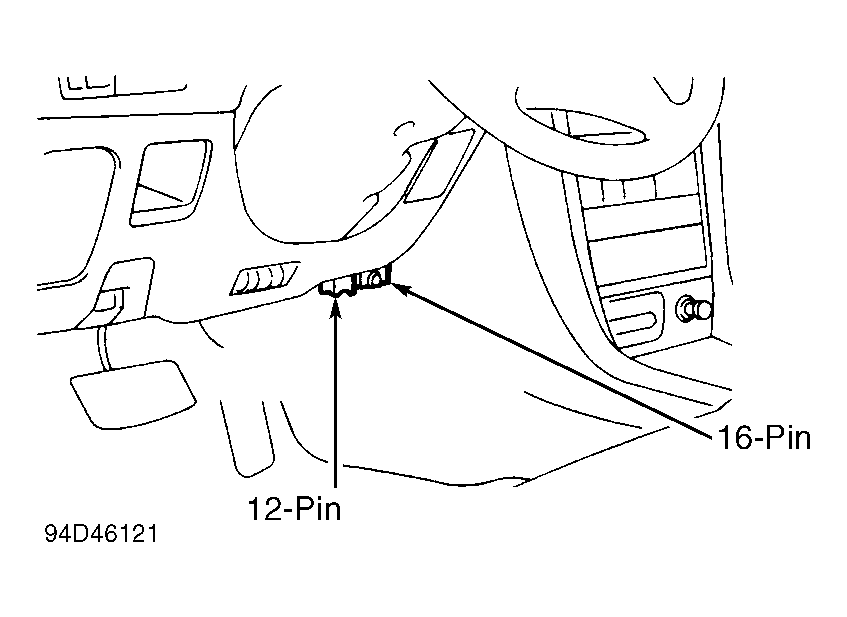

  1. Refer to manufacturer's operation manual for instructions in use of scan tester. Before entering on-board diagnostics, see SERVICE PRECAUTIONS  . Turn ignition switch to OFF position. Locate both Data Link Connectors (DLC), next to center console. See Figure .
  2. Connect scan tester to DLC. Turn ignition switch to ON position. Read and record scan tester self-diagnostic output. Perform necessary repair(s). See TROUBLE CODES  .
