Vehicle Speed Sensor

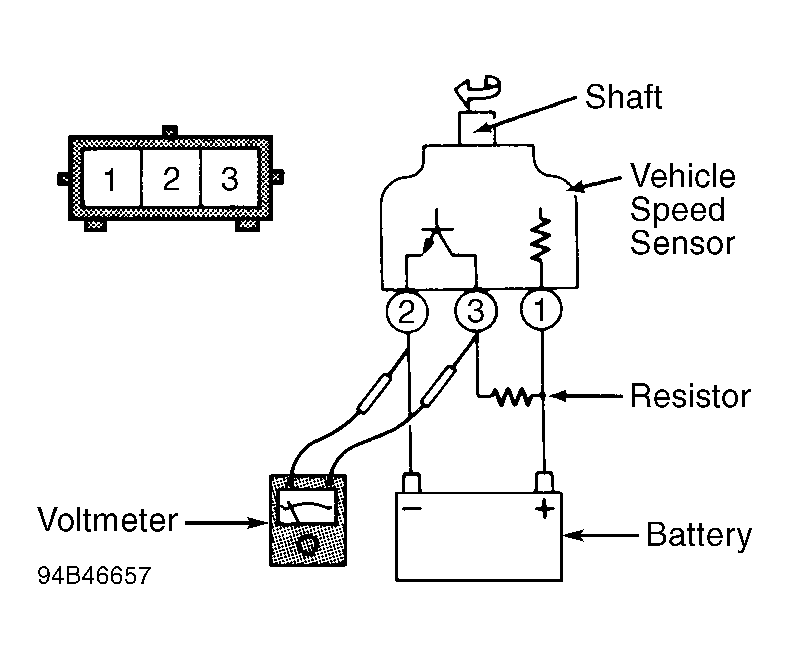

Remove speed sensor from transmission. Connect battery, resistor (3-10 ohms) and voltmeter to speed sensor terminals. When speedometer shaft is turned several times, voltage should pulse 4 times each revolution. Replace speed sensor if operation is not correct.
