Front Door Glass

With the front door glass fully opened, check its contact with the sash; adjust as follows if there is a problem.

• Remove door trim and waterproof film. See FRONT DOOR TRIMS  . Loosen the regulator assembly's channel guide installation screws, and then move the channel guide up and down to adjust the contact with the sash. See Fig 1 .

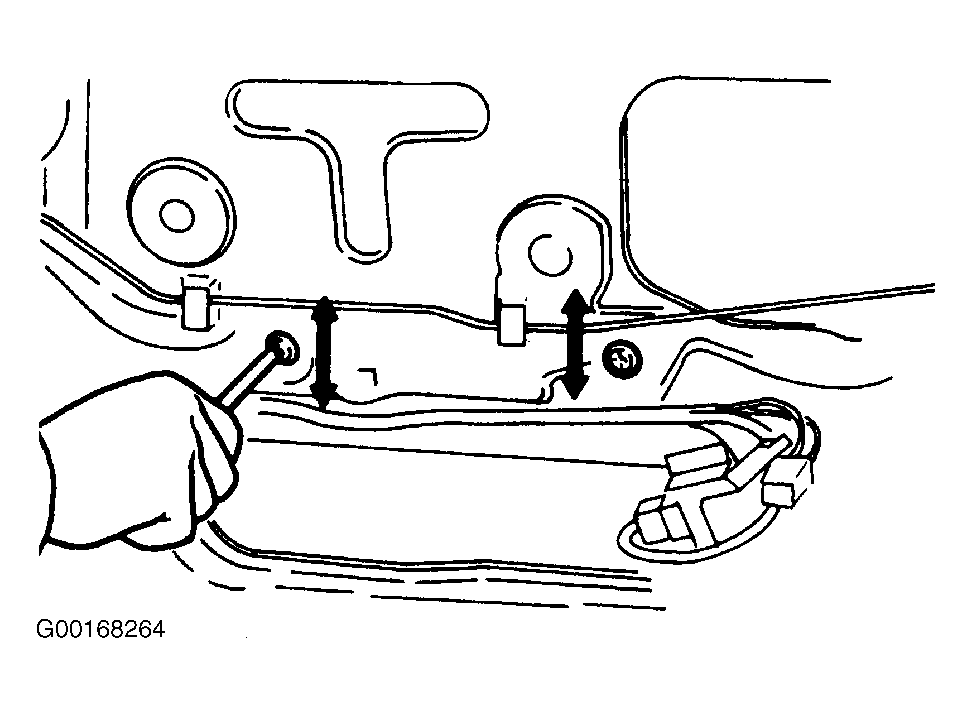

Fig 1: Adjusting Front Door Glass

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
