Component Location
>>
Auto Cruise Control
Auto Cruise Control

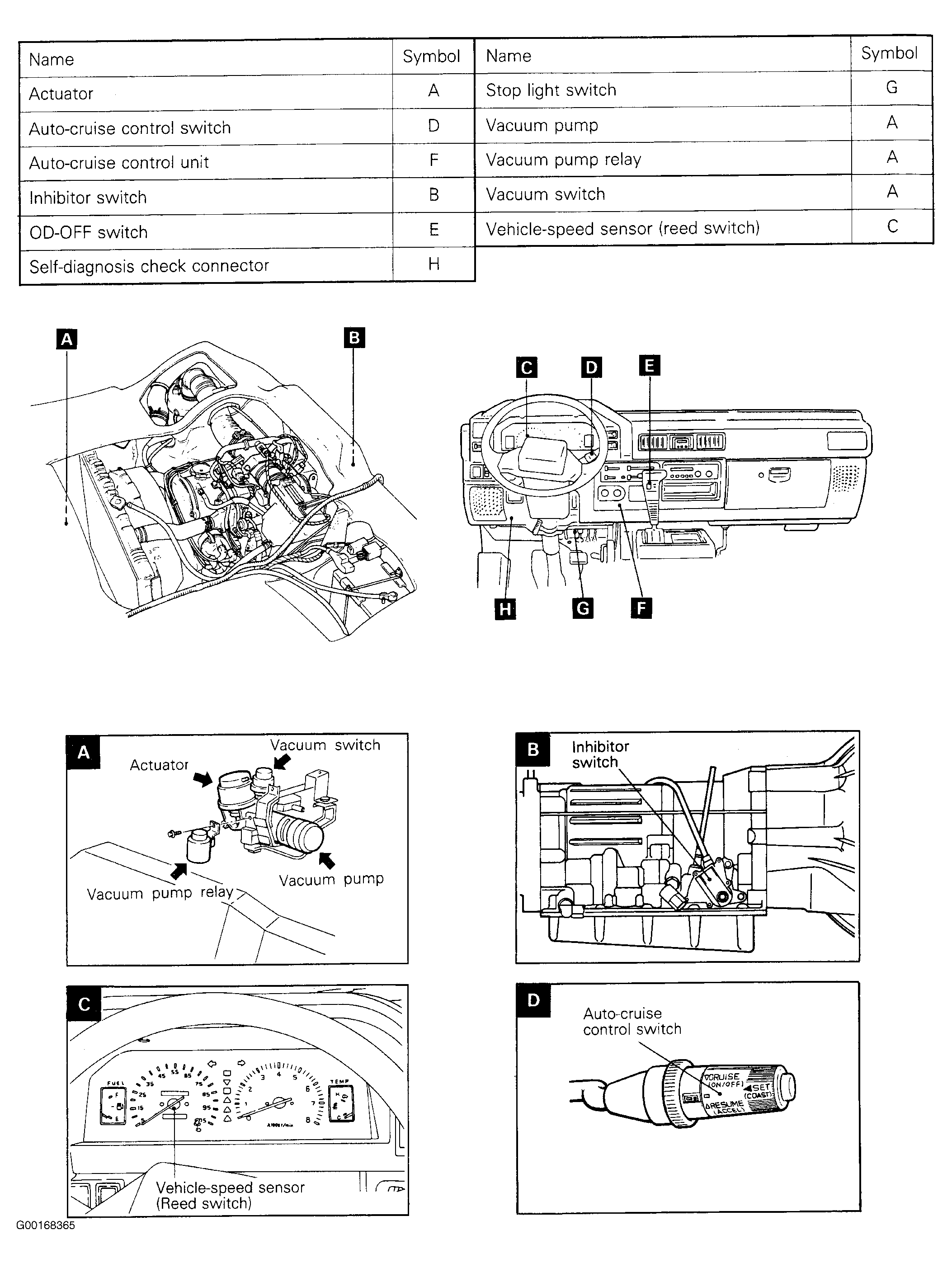

Fig 1: Locating Cruise Control Electrical Components (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

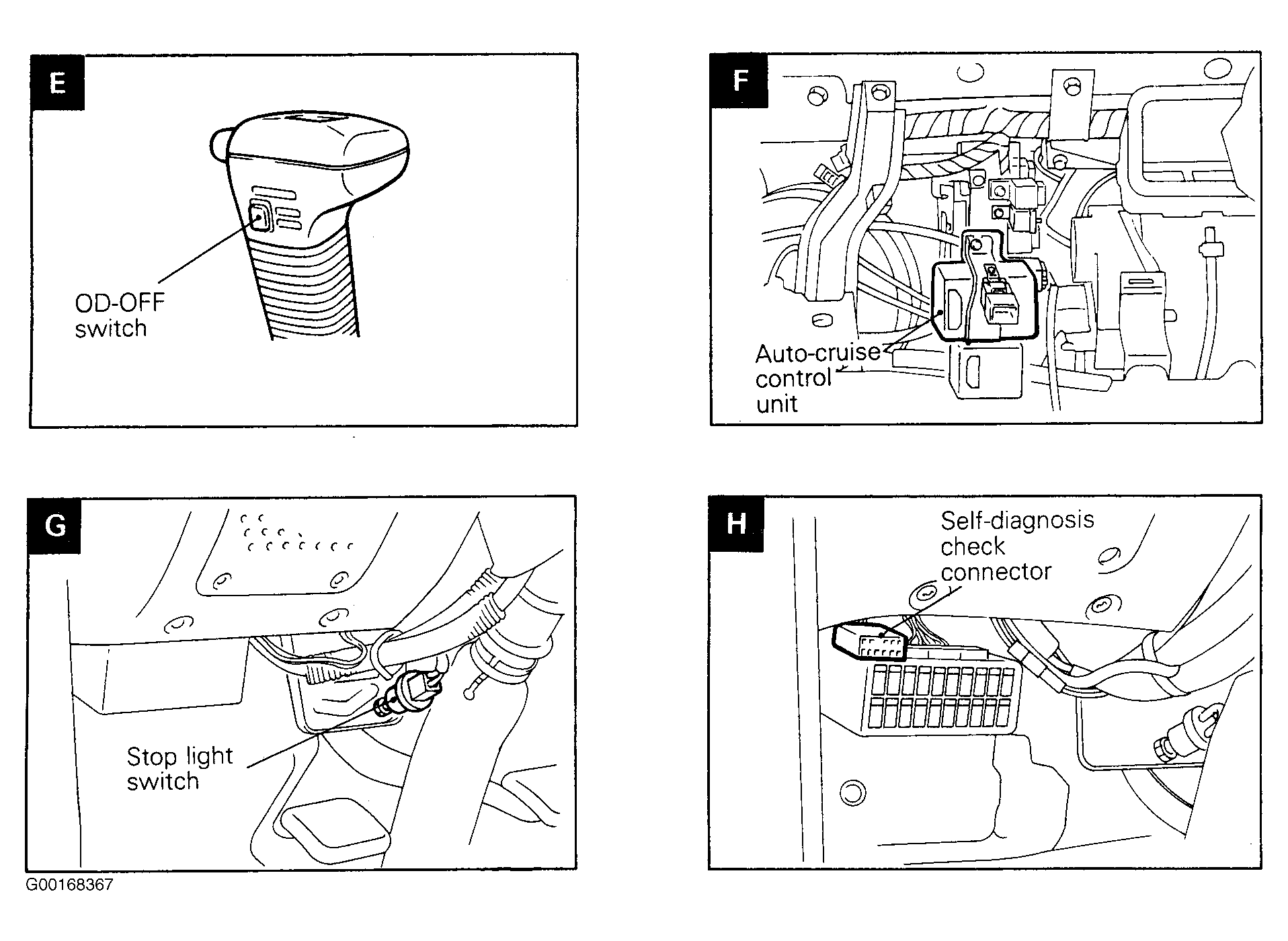

Fig 2: Locating Cruise Control Electrical Components (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

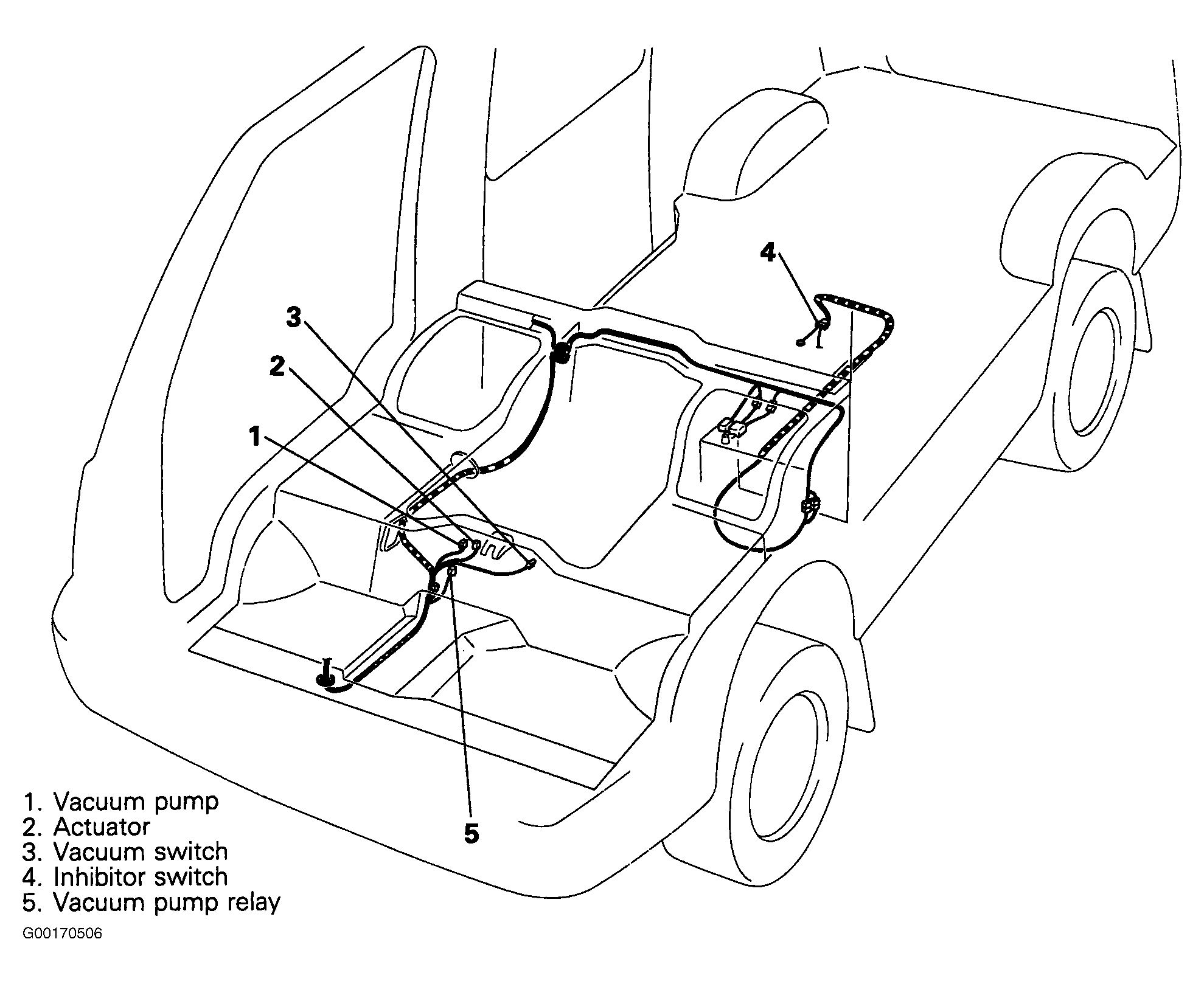

Fig 3: Locating Wire Harness Components (Engine Compartment & Under Floor)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

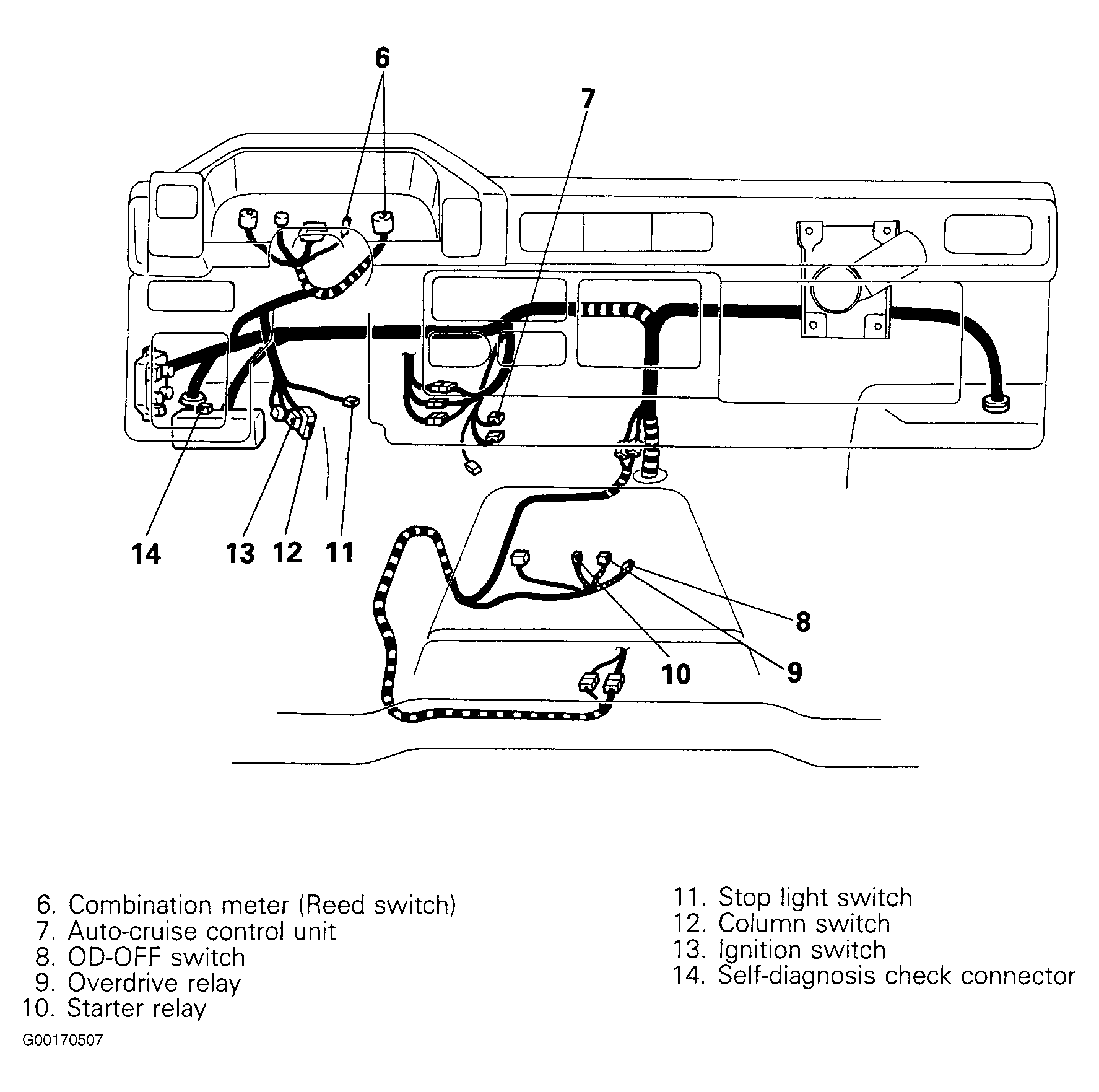

Fig 4: Locating Wire Harness Components (Inside Cabin)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
