Power Window Sub Switch

Check for continuity in accordance to the connection table. See Fig 1 .

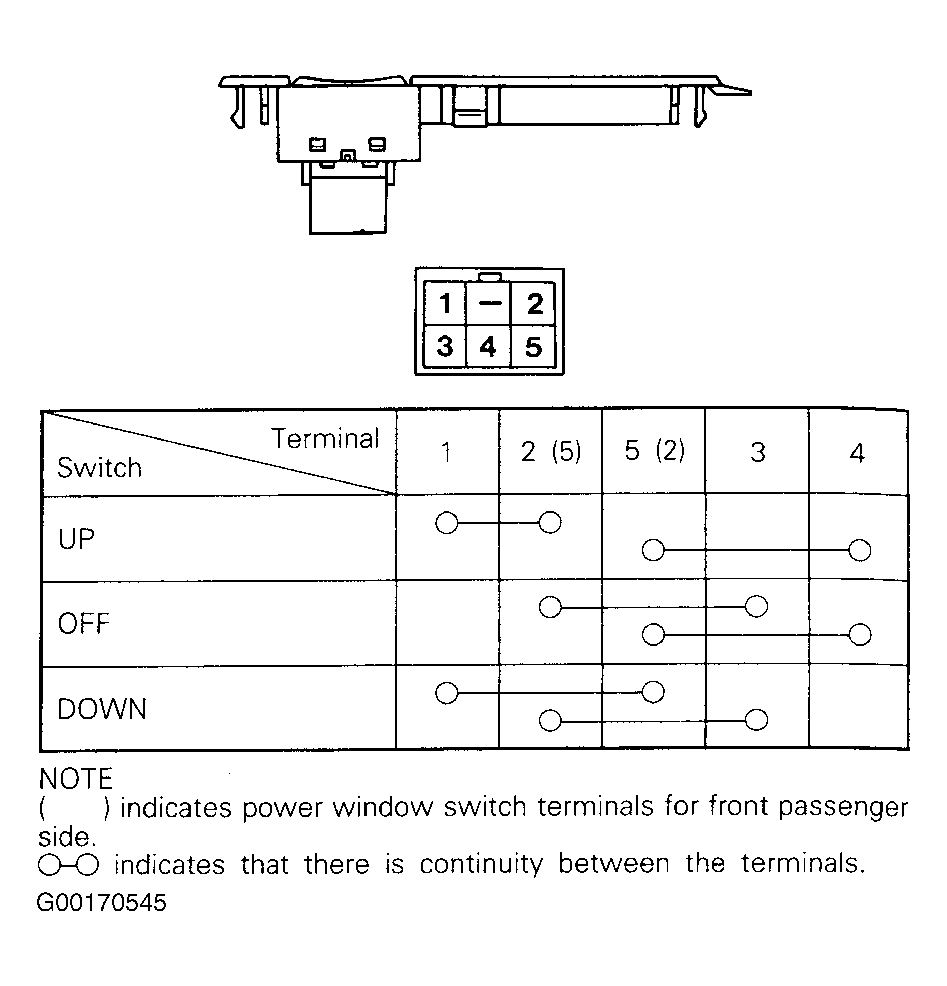

Fig 1: Testing Power Window Sub Switch
G00170545Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
