Cruise Control System: Inspection

Remove knee protector and column cover. Disconnect the column switch connector and check the continuity between the terminals for each switch. See Fig 1 .

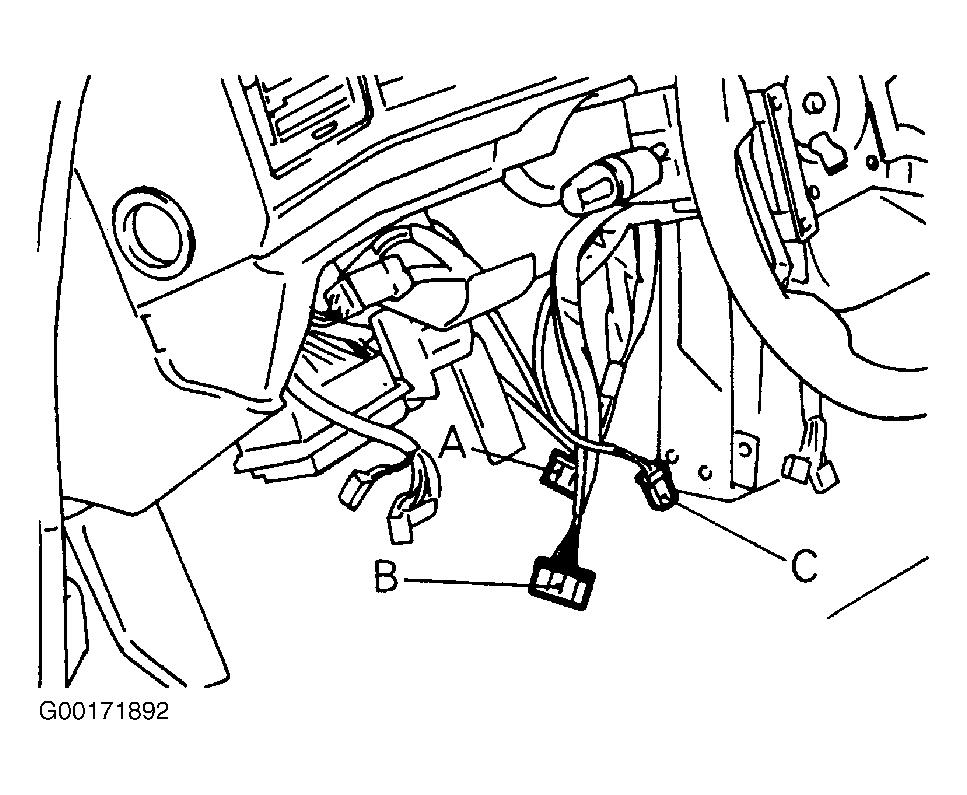

Fig 1: Inspecting Column Switch Connector
G00171892Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
