Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Adjustments
>>
Speed Control Cable
Speed Control Cable
Ensure a 1.26" (32 mm) length of speed control cable extends from adjusting nut. See
Fig 1
.

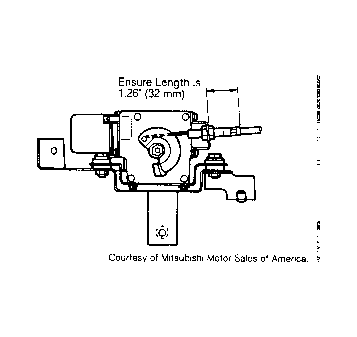

Fig 1: Speed Control Cable Adjustment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
