Torque Tube: Disassembly

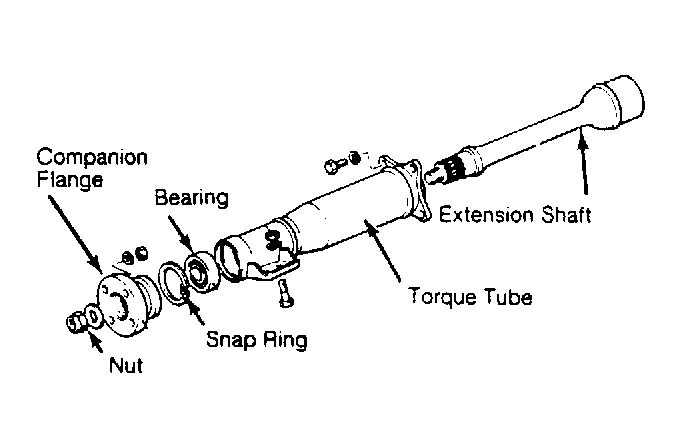

Scribe mating marks on extension shaft and companion flange. Remove companion flange. Using softfaced hammer, drive extension shaft from tube. Remove bearing retaining snap ring. Using slide hammer, remove bearing from torque tube. See Figure .
