Blower Motor Switch

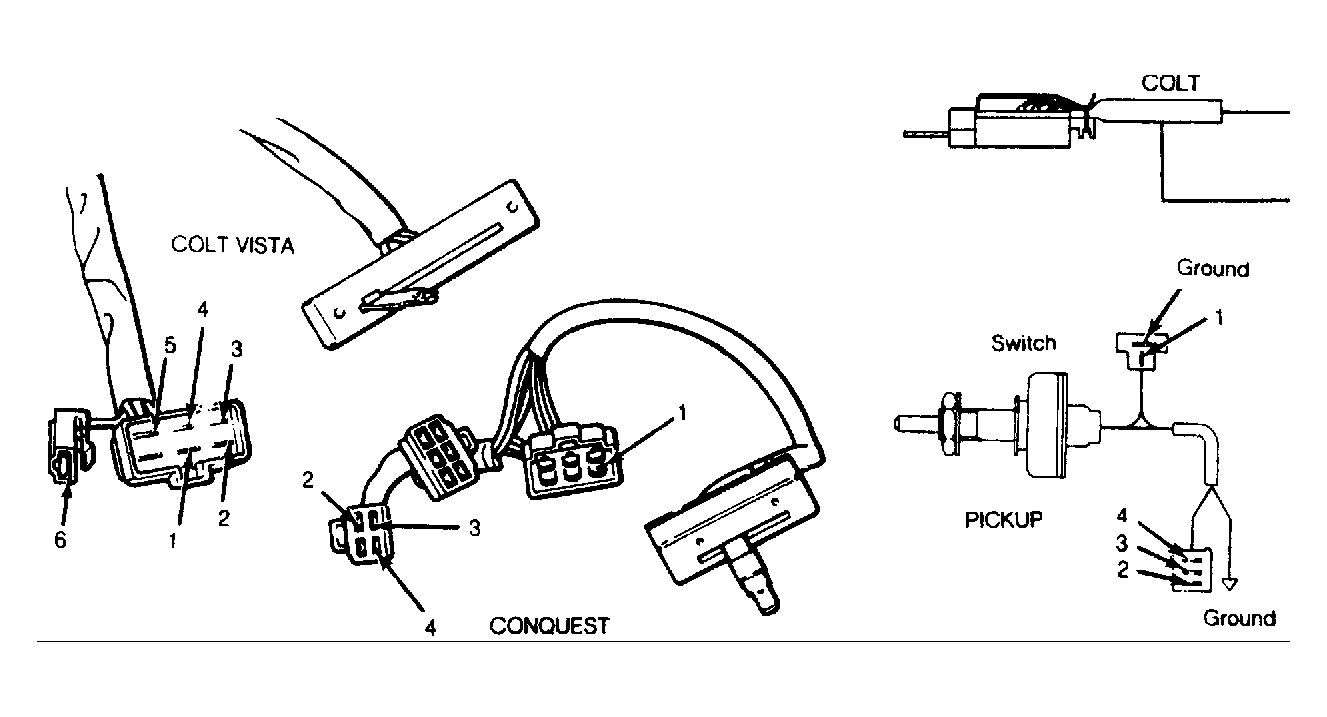

Blower motor switch can be tested using an ohmmeter. Insert test leads into appropriate connector terminals and check continuity. See BLOWER SWITCH CONTINUITY CHART.
BLOWER SWITCH CONTINUITY
| Switch Position | Continuity Between Terminal Nos. | |
|---|---|---|
| Starion | ||
| Low | 1-2 | |
| Medium | 1-3 | |
| High | 1-4 | |
| Cordia & Tredia | ||
| Low | 1-2, 2-6, 6-7 | |
| Medium 1 | 1-3, 3-6, 6-7 | |
| Medium 2 | 1-4, 4-6, 6-7 | |
| High | 1-5, 5-6, 6-7 | |
| Mirage | ||
| Low | 1-2 | |
| Medium 1 | -3, 3-9 | |
| Medium 2 | 1-4, 4-9 | |
| High | 1-5, 5-9 | |
| Montero (Front) | ||
| Low | 1-2, 2-6 | |
| Medium 1 | 1-3, 3-6 | |
| Medium 2 | 1-4, 4-6 | |
| High | 1-5, 5-6 | |
| Montero (Rear) | ||
| On | 1-3, 2-4 | |
| Off | 2-4 | |
| Pickups | ||
| Low | 1-2 | |
| Medium | 1-3 | |
| High | 1-4 | |
