Service Indicator & Warning Lights: Notes

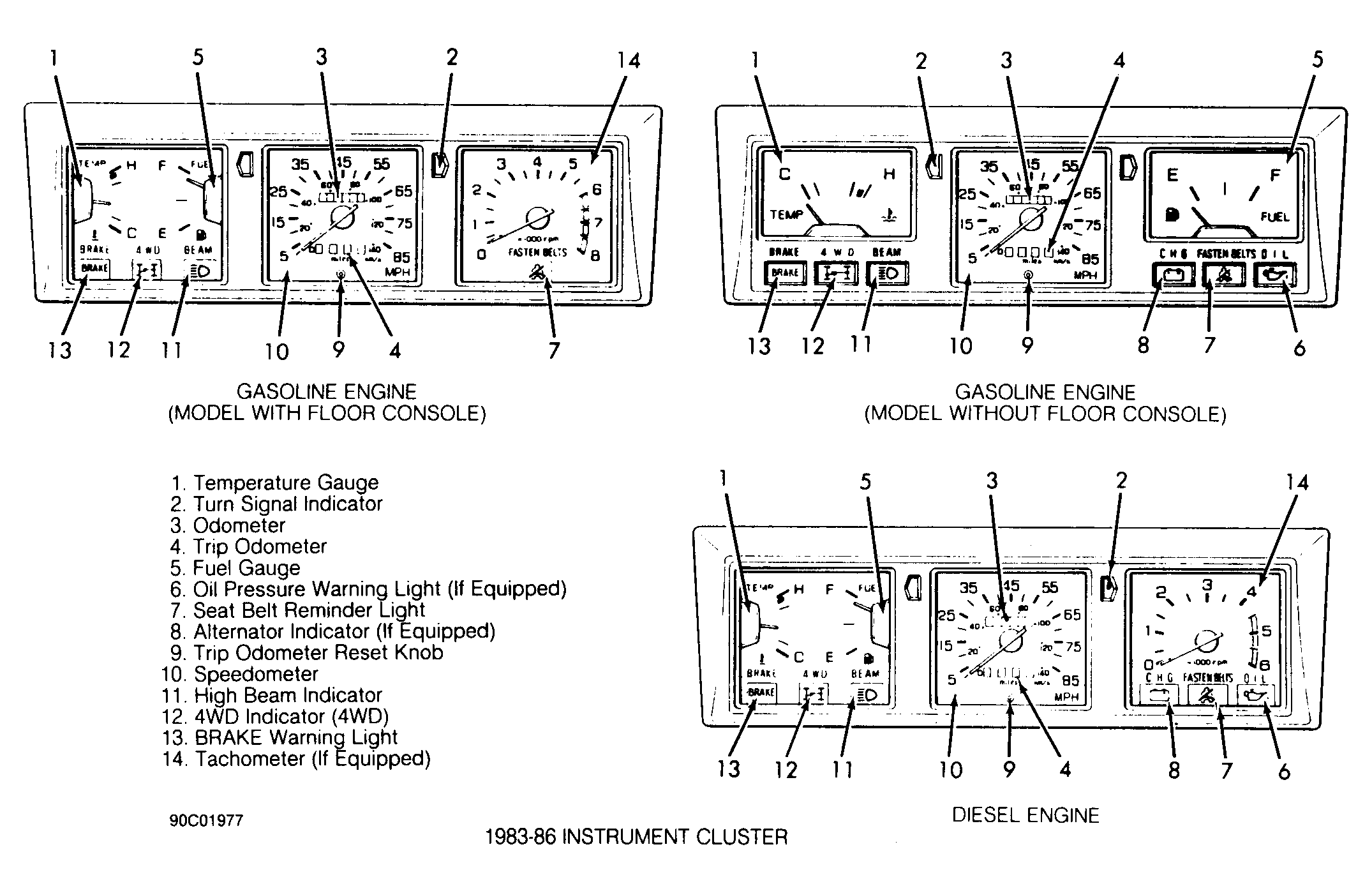

Fig 1: Dash Gauges & Warning Lights (1983-86)
G90C01977Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.

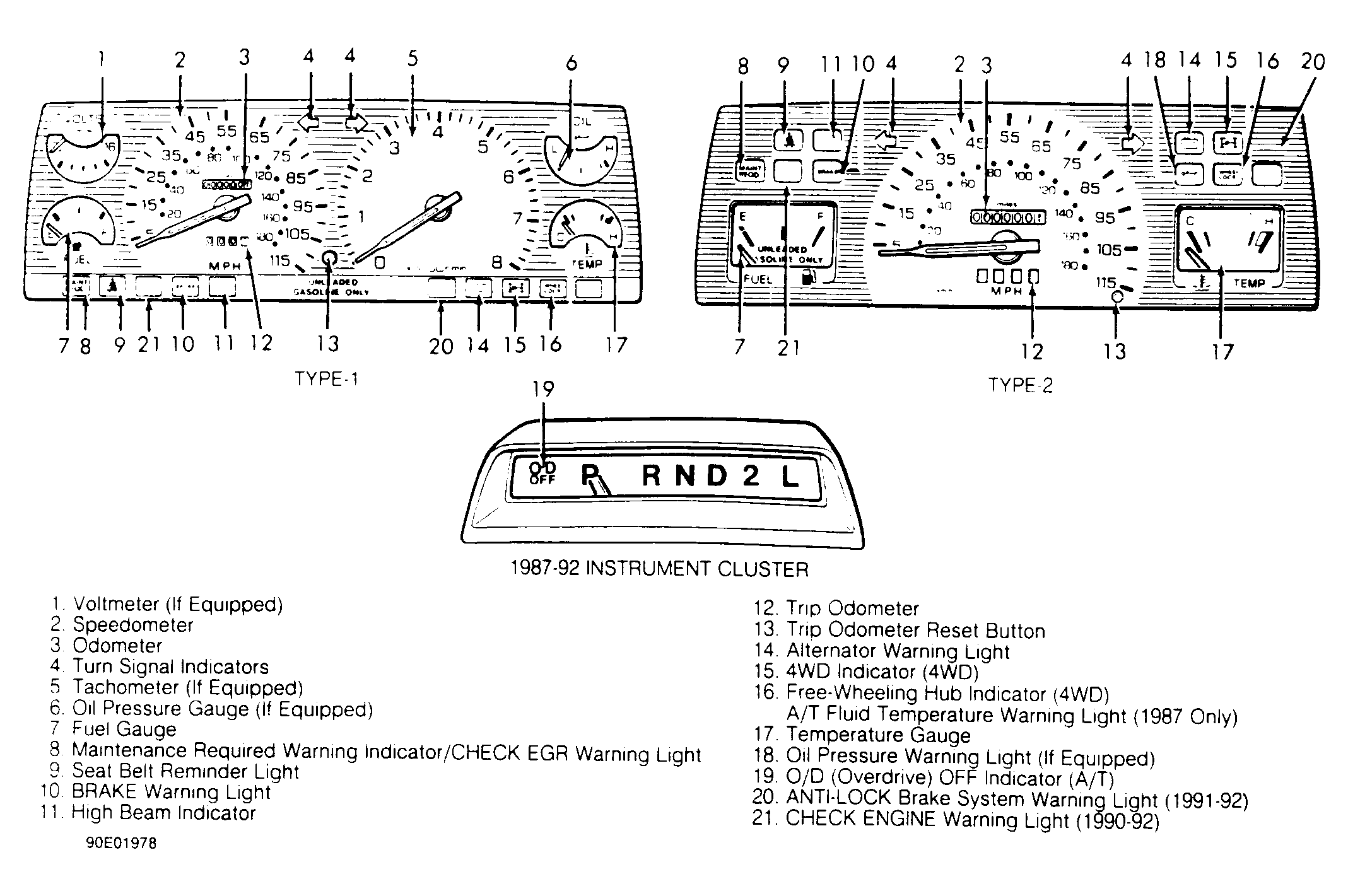

Fig 2: Dash Gauges & Warning Lights (1987-92)
G90E01978Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.
