General Electrical System - Repair - Clubman (R55)
>>
Control Units, Modules, Sensors, Aerials
>>
61 35... Overview of control units
61 35... Overview of control units

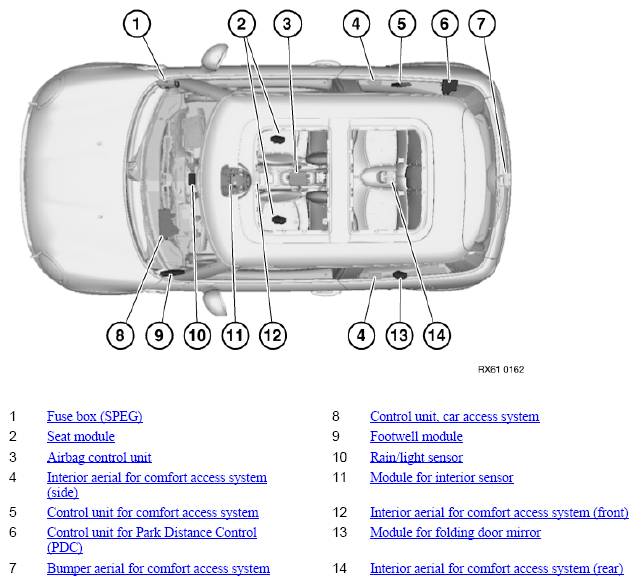

Fig 1: Overview Of Control Units
Courtesy of BMW OF NORTH AMERICA, INC.
