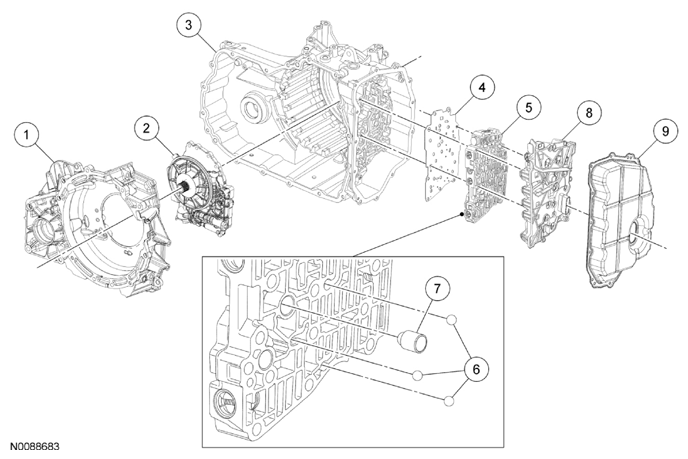

Main Control Components
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7975 | Torque converter housing |
| 2 | 7A103 | Pump assembly |
| 3 | 7005 | Transaxle case |
| 4 | 7Z490 | Main control-to-transaxle case separator plate |
| 5 | 7A100 | Valve body |
| 6 | 7E195 | Check balls |
| 7 | 7J191 | Solenoid damper (Shift Solenoid A (SSA)) |
| 8 | 7G391 | Solenoid body assembly |
| 9 | 7G004 | Main control cover |
