Transaxle Support Insulator - Anti-Roll: Notes

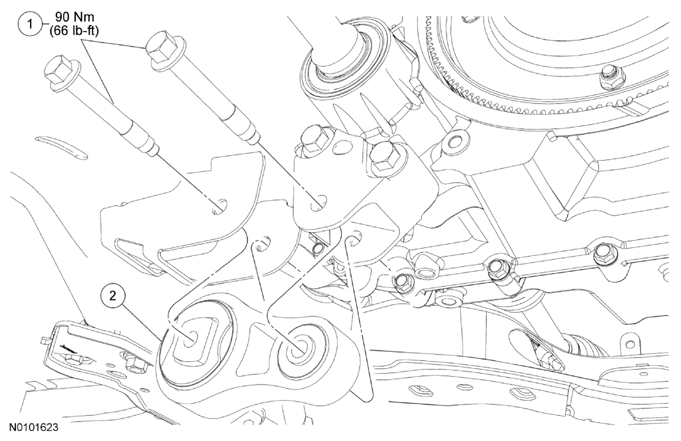

Fig 1: Transaxle Support Insulator Replacement Components With Torque Specifications - Anti-Roll
G07782996Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W711575 Roll restrictor bolts
2 6P082 Roll restrictor
