Engine Ignition Components - Exploded View

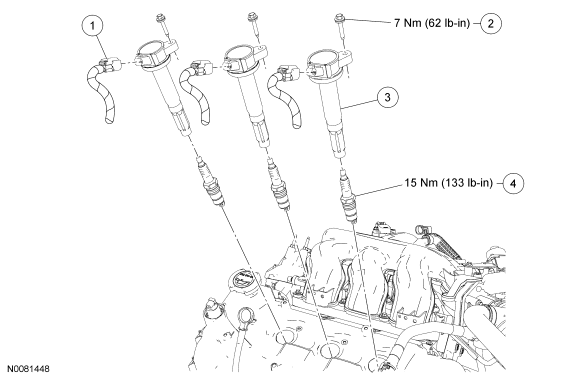

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications - LH Side

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	LH ignition coil-on-plug electrical connector (3 required) (part of 12B637)
2	W708833	LH ignition coil-on-plug bolt (3 required)
3	12A375	LH ignition coil-on-plug (3 required)
4	12405	Spark plug (3 required)

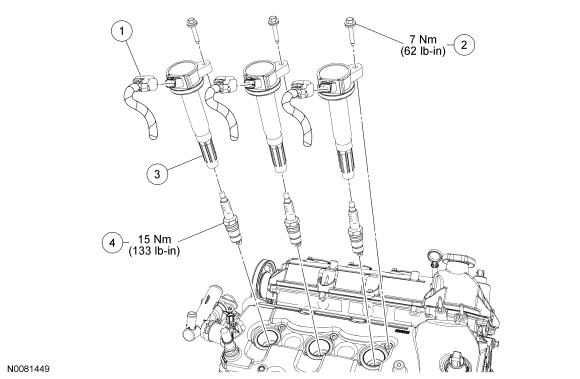

Fig 2: Exploded View Of Engine Ignition Components With Torque Specifications - RH Side

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	RH ignition coil-on-plug electrical connector (3 required) (part of 12B637)
2	W708833	RH ignition coil-on-plug bolt (3 required)
3	12A375	RH ignition coil-on-plug (3 required)
4	12405	Spark plug (3 required)

1. For additional information, refer to the procedures.
