Power Window Motor Connectors

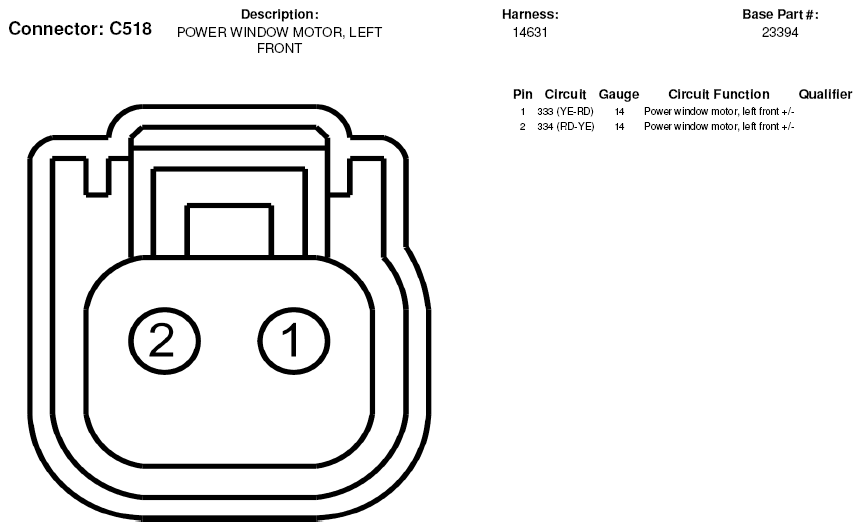

Fig 1: Power Window Motor Connector End View (C518)

G05181594

Courtesy of FORD MOTOR CO.

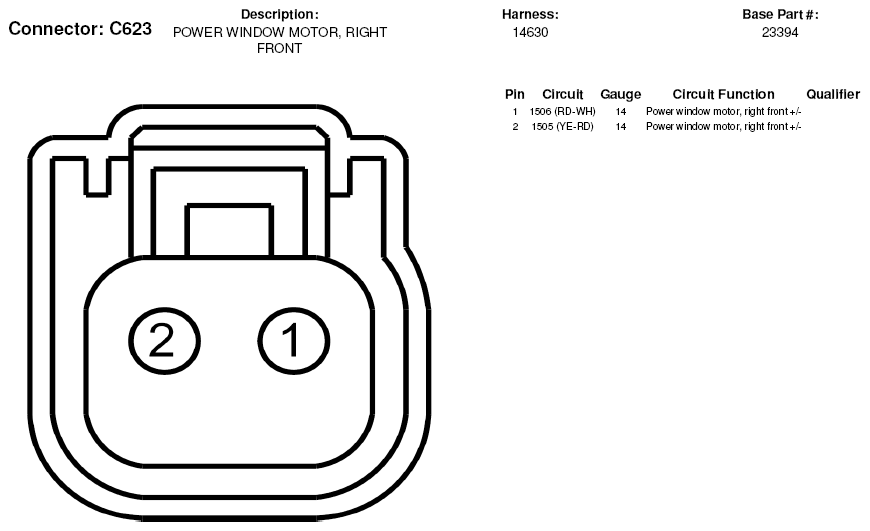

Fig 2: Power Window Motor Connector End View (C623)

G05181605

Courtesy of FORD MOTOR CO.
