Fuel Door Interlock Switch Connector

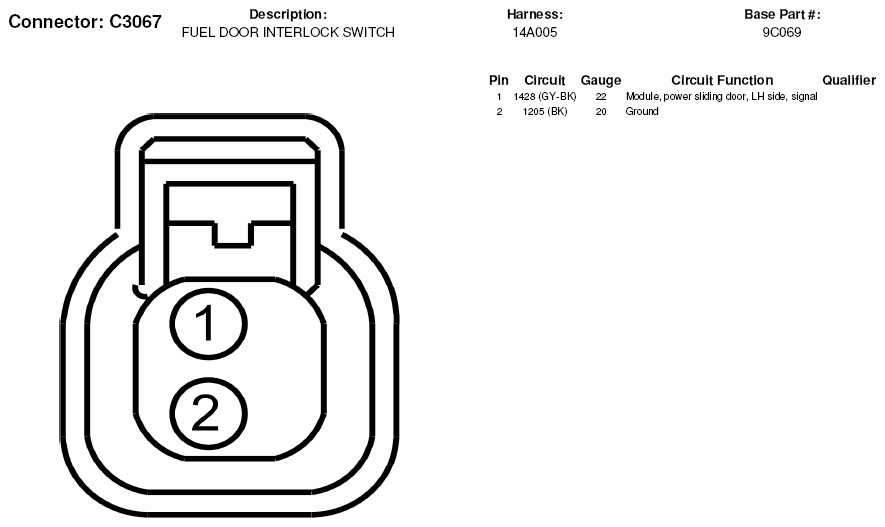

Fig 1: Fuel Door Interlock Switch Connector End View (C3067)

G05181722

Courtesy of FORD MOTOR CO.
