Restraints Control Module (RCM): Installation

  1. Position the RCM.
    2. WARNING: The tightening torque of the air bag restraints control module (RCM) retaining bolts is critical for correct system operation.
  2. Install the RCM bolts.
    • To install, tighten to 12 Nm (9 lb-ft).
    3. Fig 1: Locating RCM Bolts
    GF0016915Courtesy of FORD MOTOR CO.
  3. Make sure the large RCM electrical connector position assurance lever is in the full release position before attempting to connect the connector.
    4. Fig 2: View Of Connector Position Assurance Lever
    G03989905Courtesy of FORD MOTOR CO.
    CAUTION: Placing the large RCM electrical wiring connector into the RCM at an angle can cause bad electrical connections and damage components.
  4. Position the large RCM electrical wiring connector into the RCM.
      CAUTION: Do not push the connector to where the lever pivots and seats itself. Light pressure is needed to get the connector into position on the RCM before using the lever to fully seat the connector.
    • With the large RCM electrical wiring connector uniformly aligned to the RCM, lightly push in until a subtle audible click is heard and a slight resistance is felt.
    5. Fig 3: Aligning Large RCM Electrical Wiring Connector To RCM
    GF0016584Courtesy of FORD MOTOR CO.
  5. Connect the large RCM electrical wiring connector.
    • Using the connector position assurance lever, pivot it toward the RCM, drawing the connector into the RCM.
      • Make sure the thumb tab is engaged to the retainer on the RCM and locked in place.

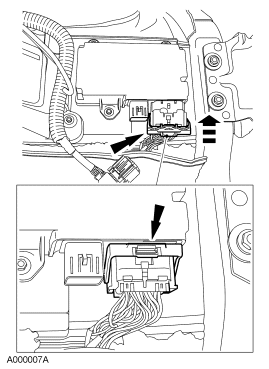

    6. Fig 4: Connecting Large RCM Electrical Wiring Connector
    GF0016585Courtesy of FORD MOTOR CO.
  6. Connect the small RCM electrical connector.
  7. Install the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
  8. Repower the system. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
