Driver Air Bag Module: Notes

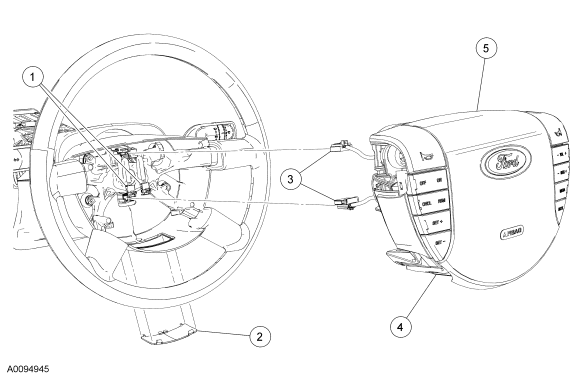

Fig 1: Exploded View Of Driver Air Bag Module
GF0016891Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Air bag module electrical connectors (part of 14A664)
2 - Steering wheel access cover
3 - Horn and accessories electrical connectors
4 - Air bag module wire clip (part of 043B13)
5 043B13 Air bag module
