Engine Ignition Components - Exploded View

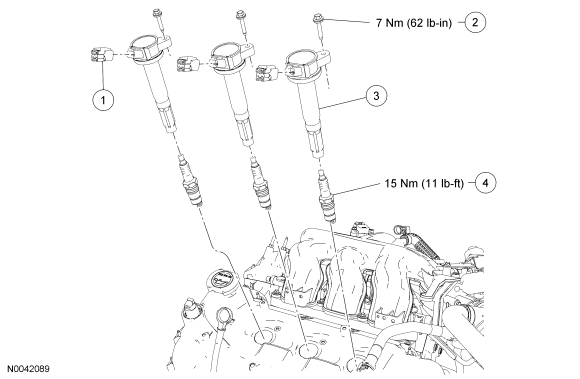

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Ignition coil-on-plug electrical connector (6 required) (part of 12B637)
2	W708833	Ignition coil-on-plug bolt (6 required)
3	12A375	Ignition coil-on-plug (6 required)
4	12405	Spark plug (6 required)

1. For additional information, refer to the appropriate procedures.
