Special Tool(s)
SPECIAL TOOL CHART
| Dial Indicator With Bracketry 100-002 (TOOL-4201-C) | |
| Handle, Torque Converter 307-091 (T81P-7902-C) | |
| Holding Fixture, Transmission 307-003 (T57L-500-B) | |
| Drawbar (Heavy Duty Threaded) 204-029 (T77F-1176-A) | |

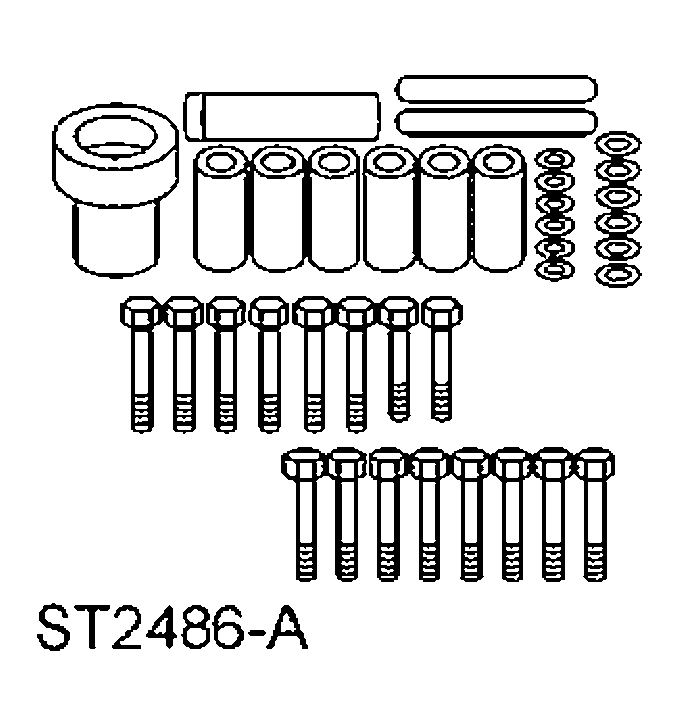

| Shim Selection Set (Bolts) 308-161 (T88C-77000-C) | |
| Shim Selection Set (Legs) 308-164 (T88C-77000-JF) | |
| Installer, Output Shaft Seal 307-527 | |
| Installer, Output Shaft Seal 307-528 | |
| Installer, Differential Bearing Cup 307-530 (includes 307-530-1 and 307-530-2) | |
| Variator Socket 307-545 | |

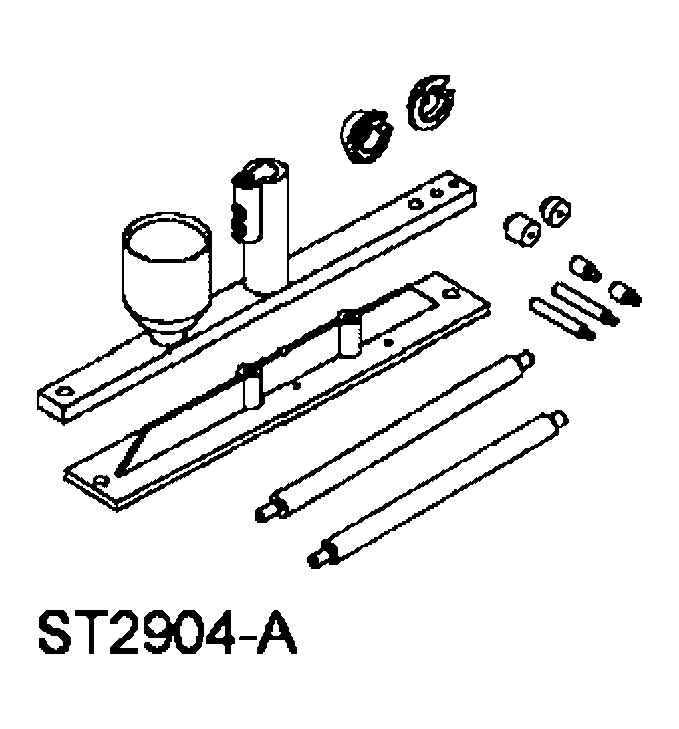

| Holding Fixture, Transaxle Variator Assembly 307-547 (includes 307-547-1, 307-547-2, 307-547-7, 307-547-8, 307-547-9) | |
| Differential Preload Set-Up Tool 307-533 | |
| Stack Up Gauge 307-534 | |
| Installer, C-Clip 307-565 |
