Connecting Rod - Piston Pin Side Clearance

  1. Measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
    • Refer to the appropriate ENGINE article for more information.
    • If out of specification, install new components as necessary.

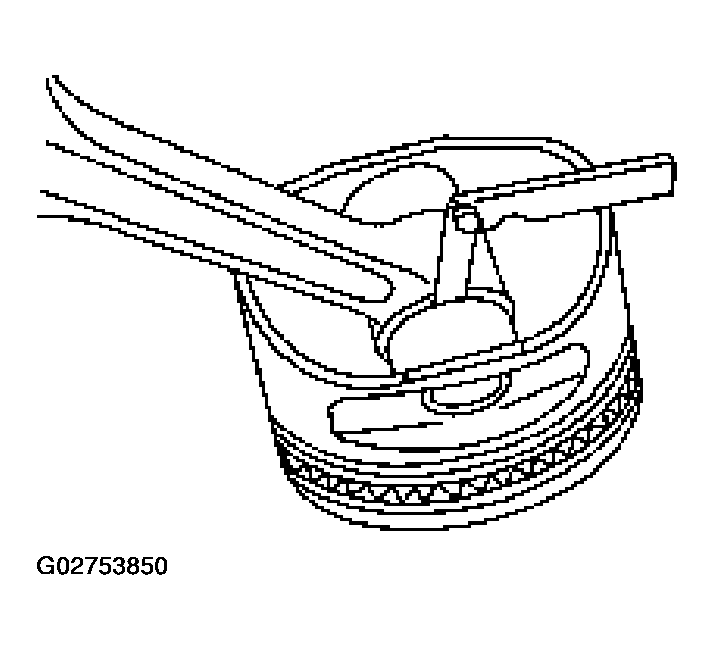

    Fig 1: Measuring Clearance Between Connecting Rod And Piston
    G02753850Courtesy of FORD MOTOR CO.
