Removal & Installation

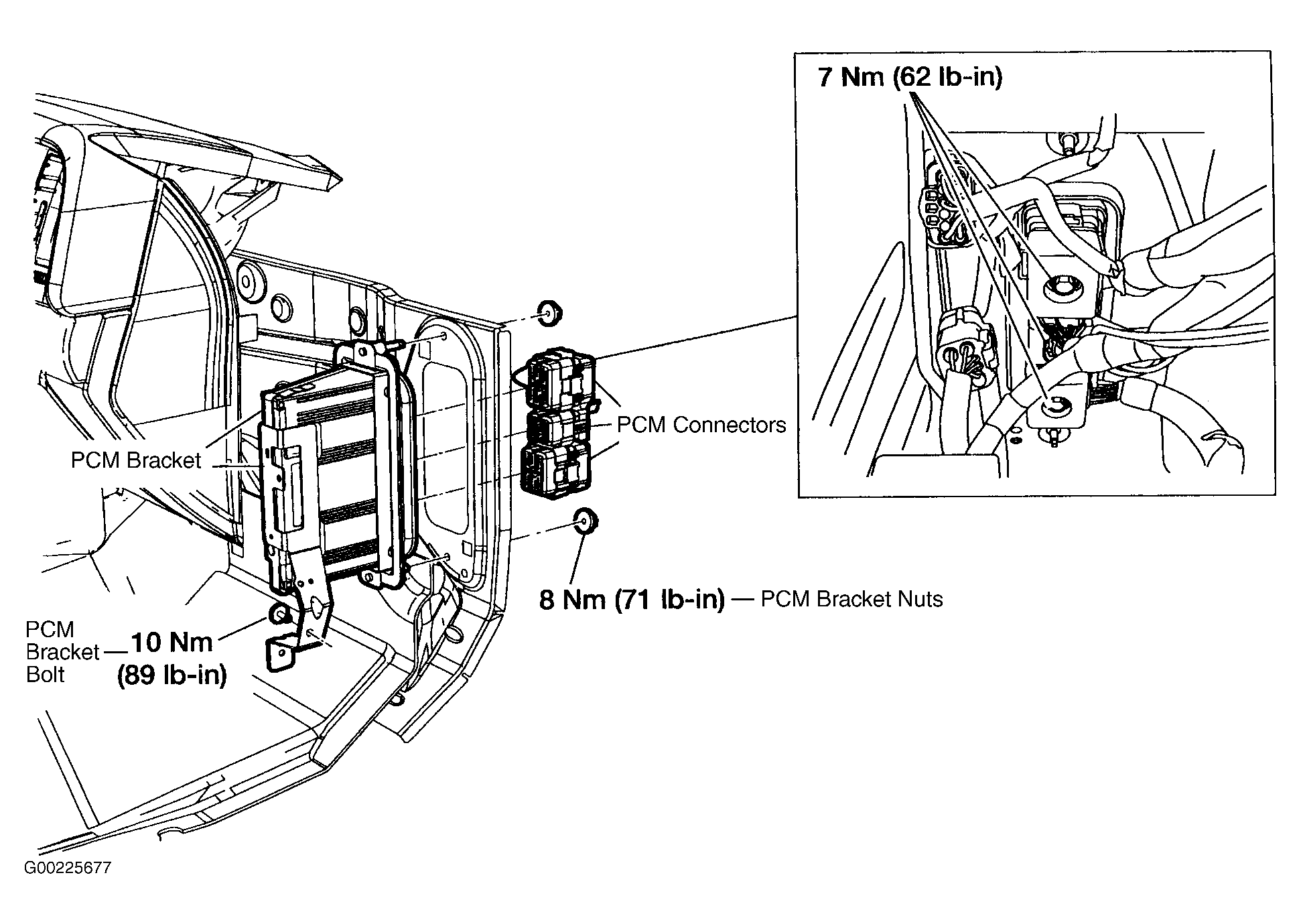

Disconnect negative battery cable. PCM is located on right rear of engine compartment, mounted on cowl. Loosen PCM connector retaining bolts. Unplug harness connectors from PCM. Remove 2 PCM mounting nuts. See Fig 1. Remove glovebox. Remove bolt and PCM. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
