Floor Console: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Position the seats as needed to remove the console.
Disconnect the battery. For additional information, Refer to BATTERY AND CHARGING SYSTEM .
To remove individual components only, carry out the following steps.

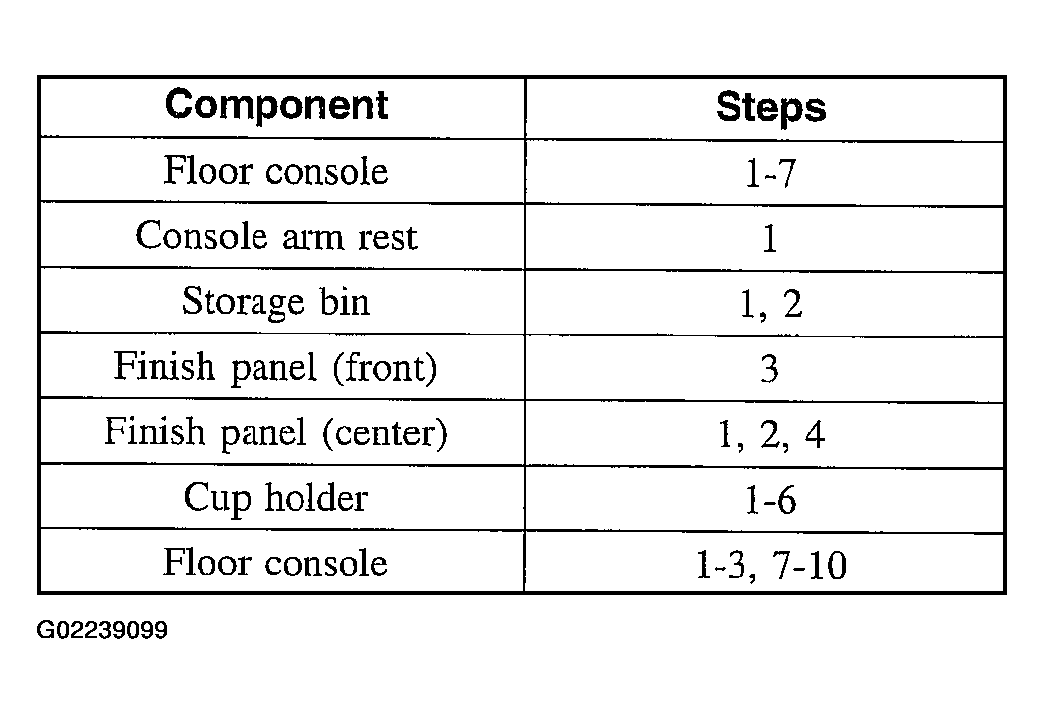

Fig 1: Components Stepping Chart
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in Fig 2.

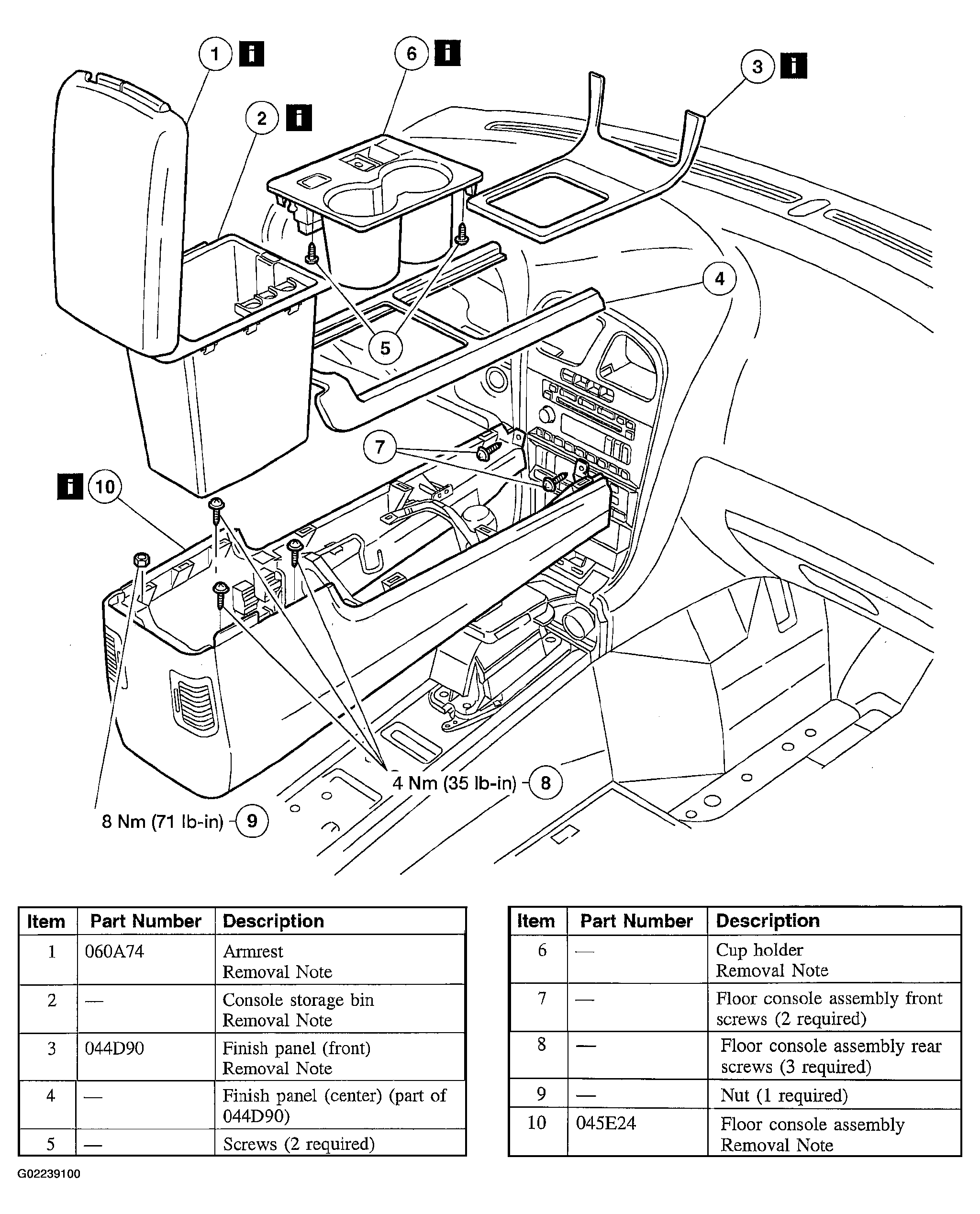

Fig 2: Identifying Floor Console Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
