Multifunction Switch C202b

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Multifunction Switch C202B
G02188258Courtesy of FORD MOTOR CO.

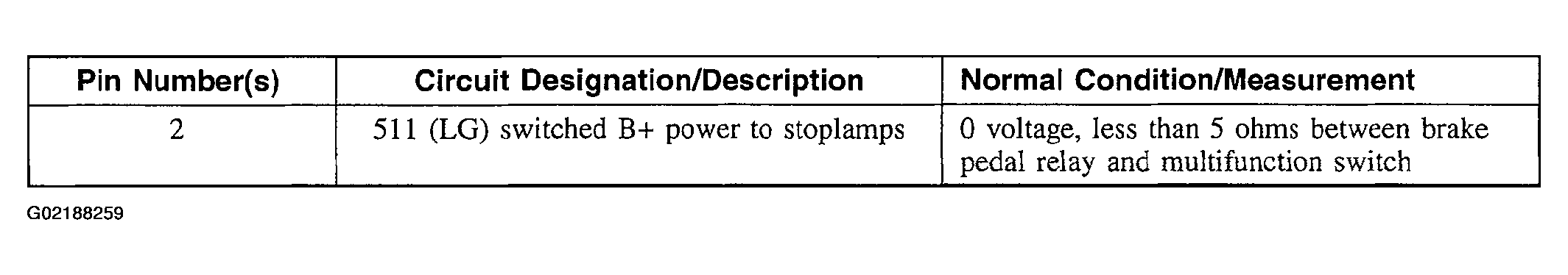

Fig 2: Identifying Description Table
G02188259Courtesy of FORD MOTOR CO.
