Crankshaft Runout

Special Tool(s)

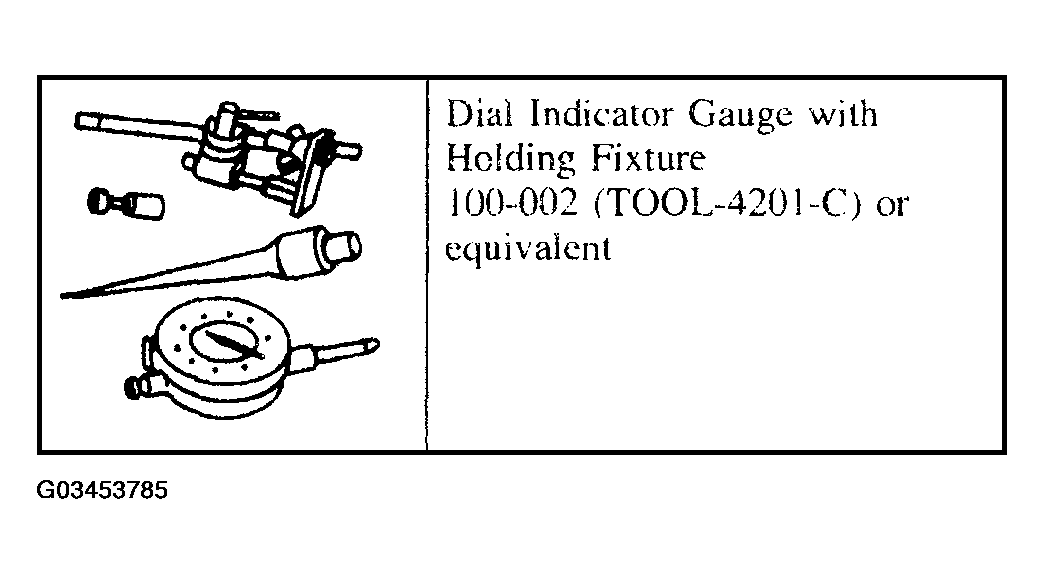

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

NOTE: Crankshaft main bearing journals must be within specifications before checking runout.
1. Use the Dial Indicator Gauge with Holding Fixture to measure the crankshaft runout.
   • Refer to ENGINE 4.6L 2V or ENGINE 4.6L 4V .
   • Rotate the crankshaft and subtract the lowest dial indicator reading from the highest dial indicator reading to figure the crankshaft runout. If it is out of specification, install new components as necessary. Refer to ENGINE 4.6L 2V or ENGINE 4.6L 4V .

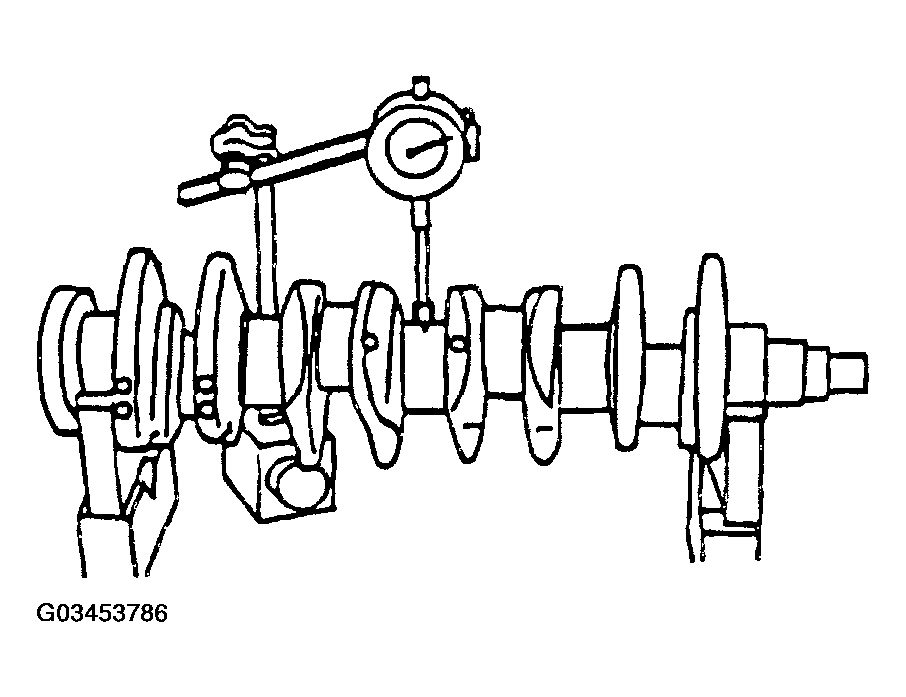

     Fig 2: Measuring Crankshaft Runout

     Courtesy of FORD MOTOR CO.
