Temperature Cable

WARNING: This page is about a different car, the 2002 Saturn LW300, 2002 Saturn LW200, 2002 Saturn L300, 2002 Saturn L200, and 2002 Saturn L100. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove right console extension. See Fig 1 . Remove temperature cable from module retaining clip using first 2 fingers to pull outward on the cable while using the thumb to spread retaining clip. See Fig 2 .
  2. Place temperature control knob in the full cold position and rotate temperature door lever fully forward and press cable housing into retaining clip.
  3. Cycle the control head temperature lever from full cold to full hot to verify proper operation. Install right console extension.

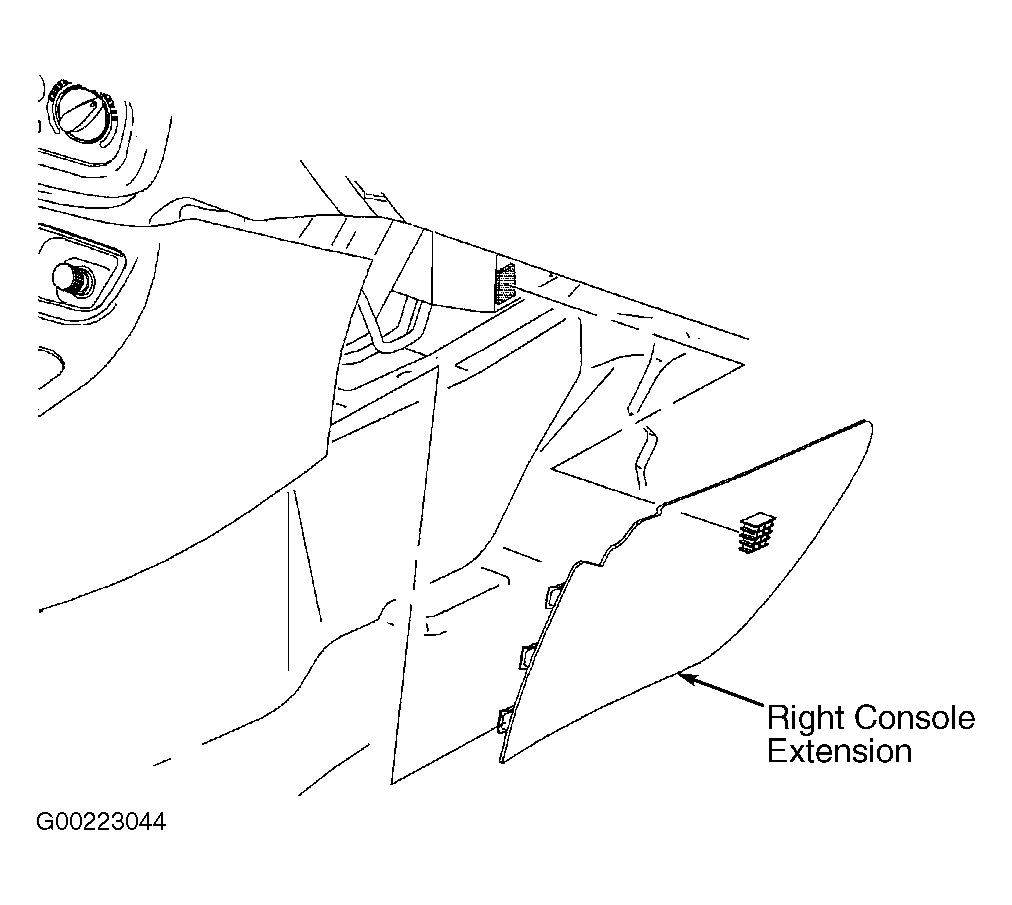

Fig 1: Removing & Installing Right Console Extension
G00223044Courtesy of GENERAL MOTORS CORP.
Fig 2: Removing & Installing Temperature Cable At Retaining Clip
G00223017Courtesy of GENERAL MOTORS CORP.
