Speed Control DEACTIVATOR Switch Adjustment

  1. Adjust the deactivator switch.
    1. Pull the switch plunger out to its full extent.
    2. Fully depress the brake pedal.
    3. Install the switch.
    4. Slowly release the brake pedal.

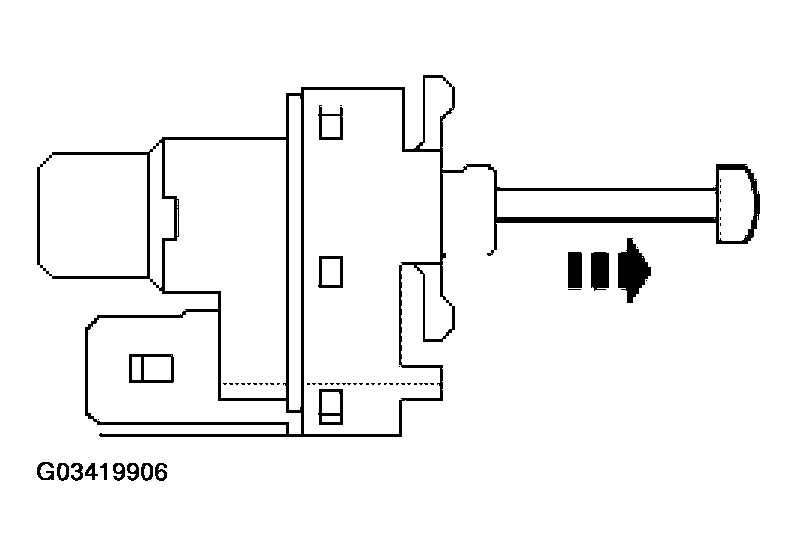

      Fig 1: Adjusting Deactivator Switch
      G03419906Courtesy of FORD MOTOR CO.
