Trouble Shooting: Notes

Manufacturer's sequence for diagnosing and repairing autolamp system is as follows:

• Check battery junction box fuses No. 29 (100-amp), No. 57 (10-amp), No. 59 (7.5-amp) and No. 61 (10-amp). See Fig 1
• Check for damaged wiring or harness connectors.
• Check for damaged headlight switch.
• Check for loose or corroded connections.
• Check for a covered light sensor.

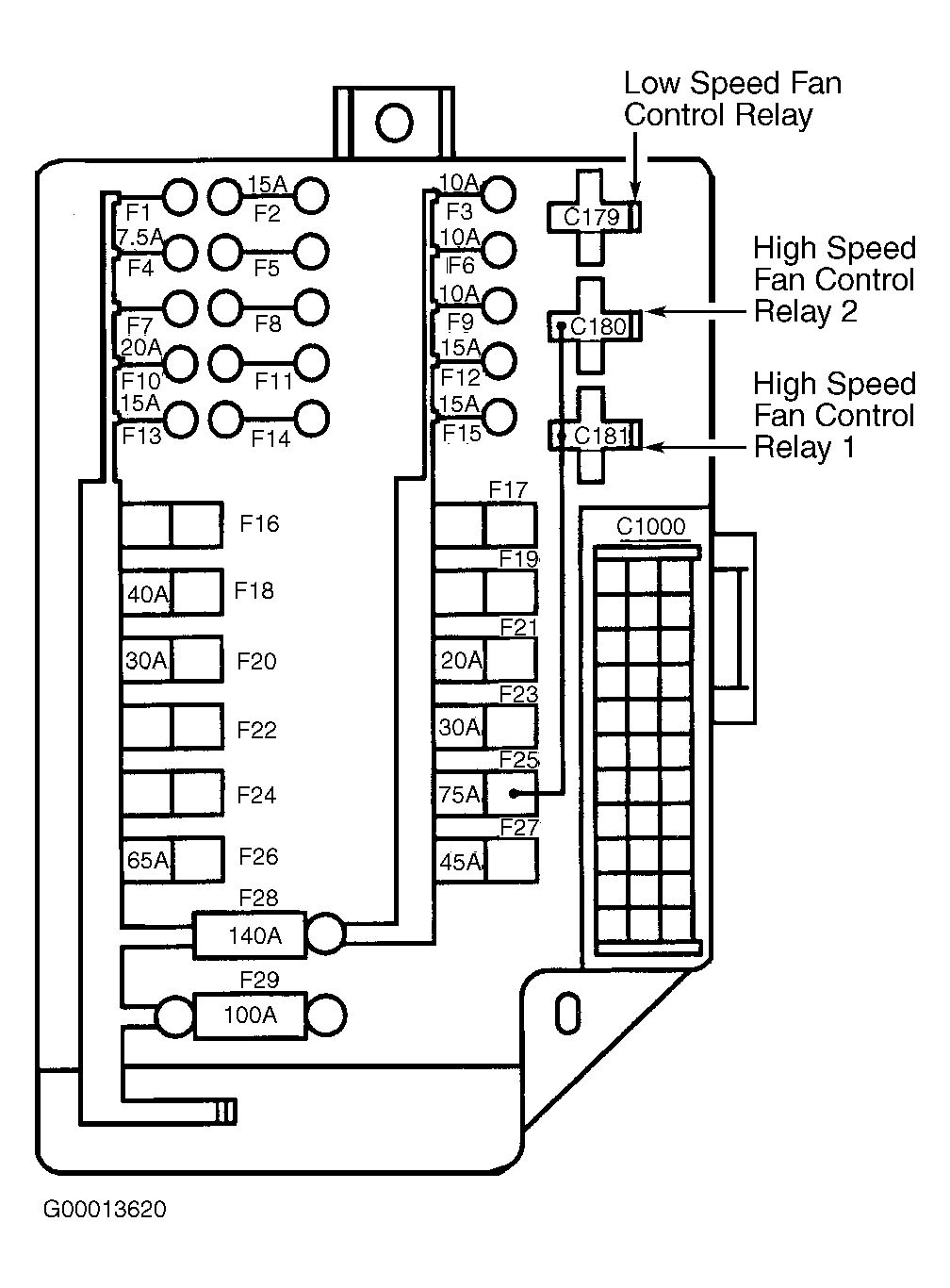

Fig 1: Identifying Battery Junction Box Fuses

Courtesy of FORD MOTOR CO.
