Power Window Relay

NOTE: Power window relay is located behind left side of Instrument Panel (I/P). See Fig 1.

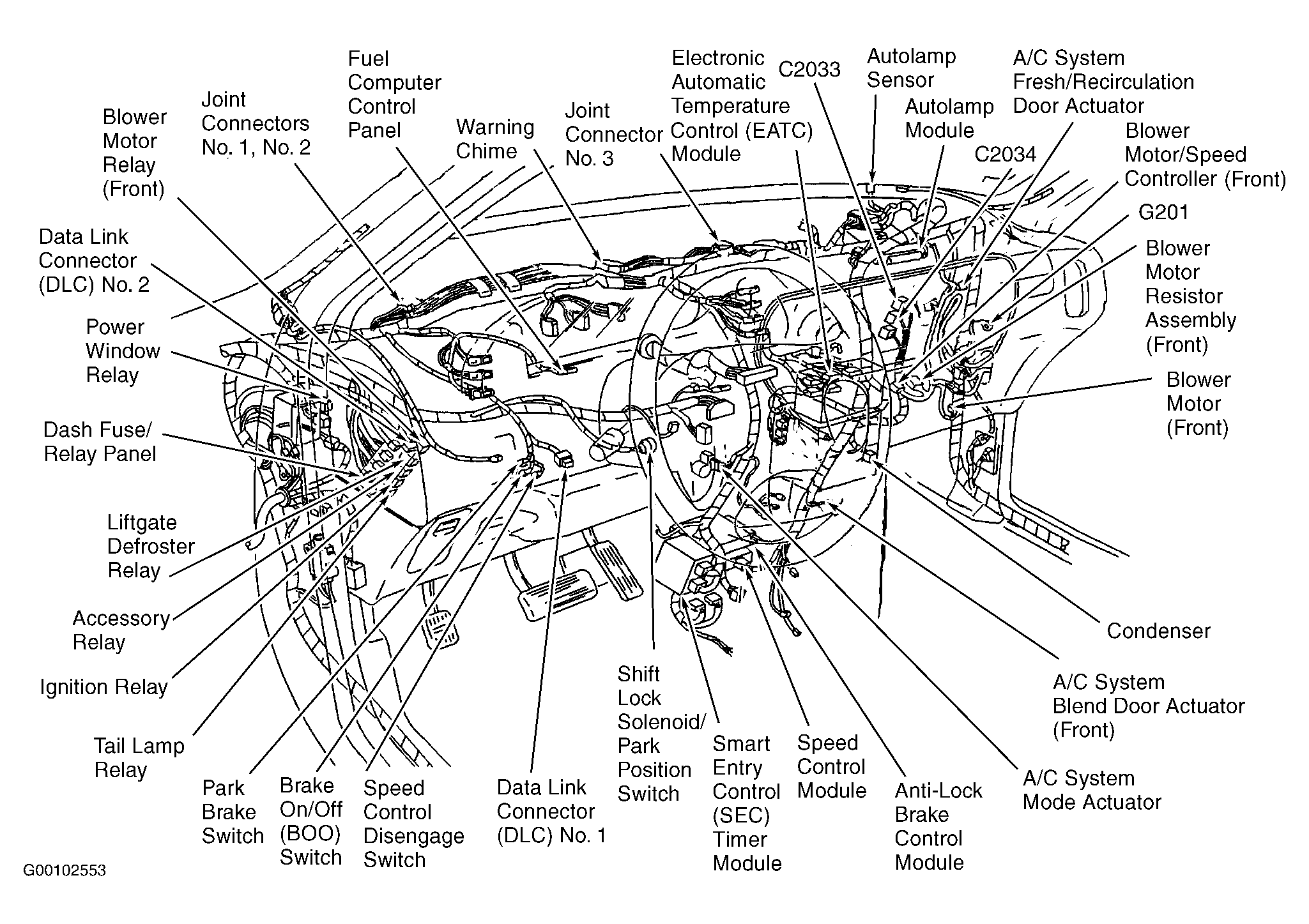

Fig 1: Dash

G00102553

Courtesy of FORD MOTOR CO.
