Mercury
>>
1996
>>
Villager LS
>>
Repair and Diagnosis
>>
Electrical
>>
Fuses & Circuit Breakers
>>
Identification
>>
Fuse Links
Fuse Links
Fuse links are located on driver's side of engine compartment, near battery. See
Fig 1
.

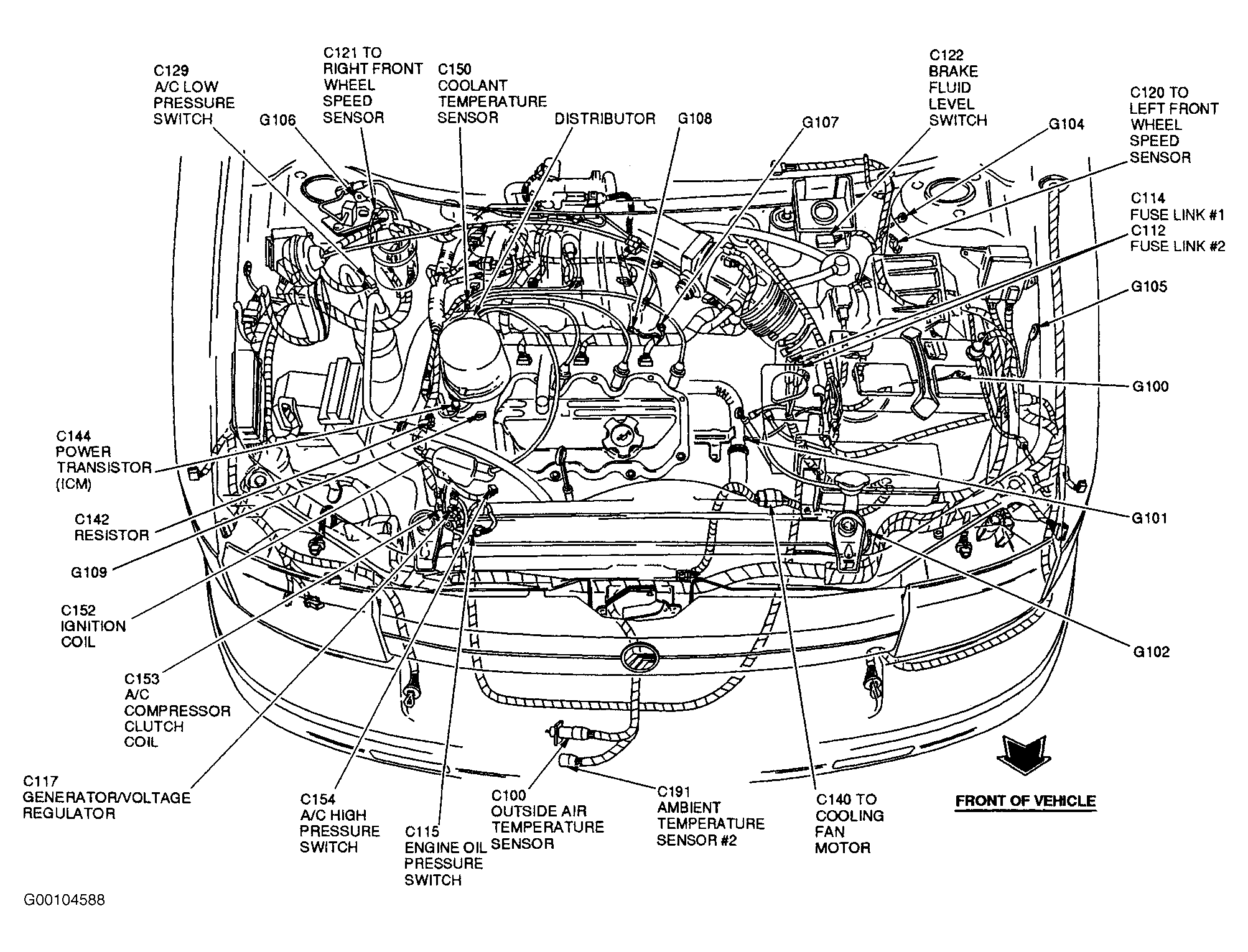

Fig 1: Locating Fuse Links
Courtesy of FORD MOTOR CO.
