Engine Compartment Fuse/Relay Panel

NOTE: Engine compartment fuse/relay panel is located on driver's side of engine compartment, near battery. See Fig 1.

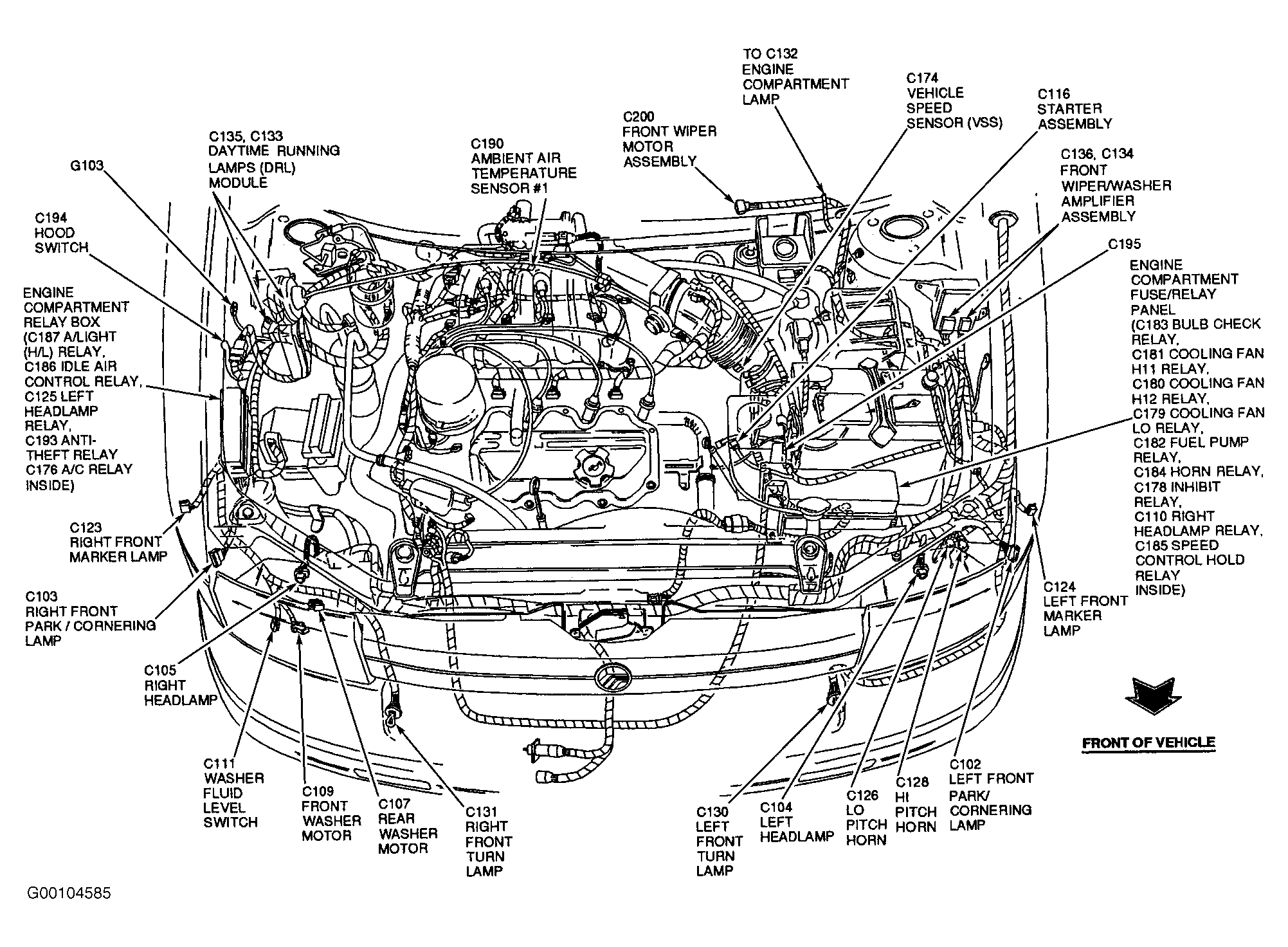

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of FORD MOTOR CO.

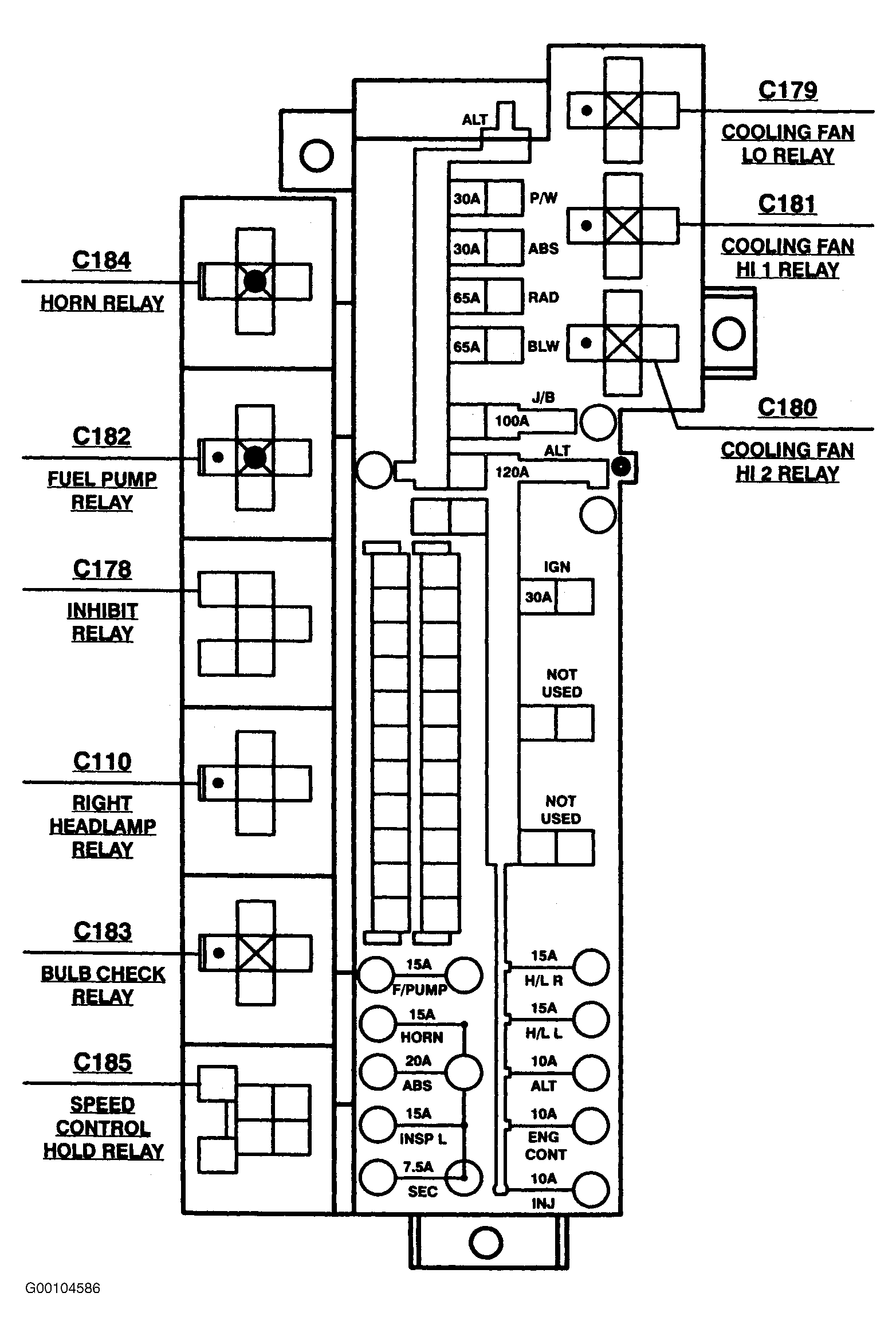

Fig 2: Identifying Engine Compartment Fuse/Relay Panel Components

Courtesy of FORD MOTOR CO.

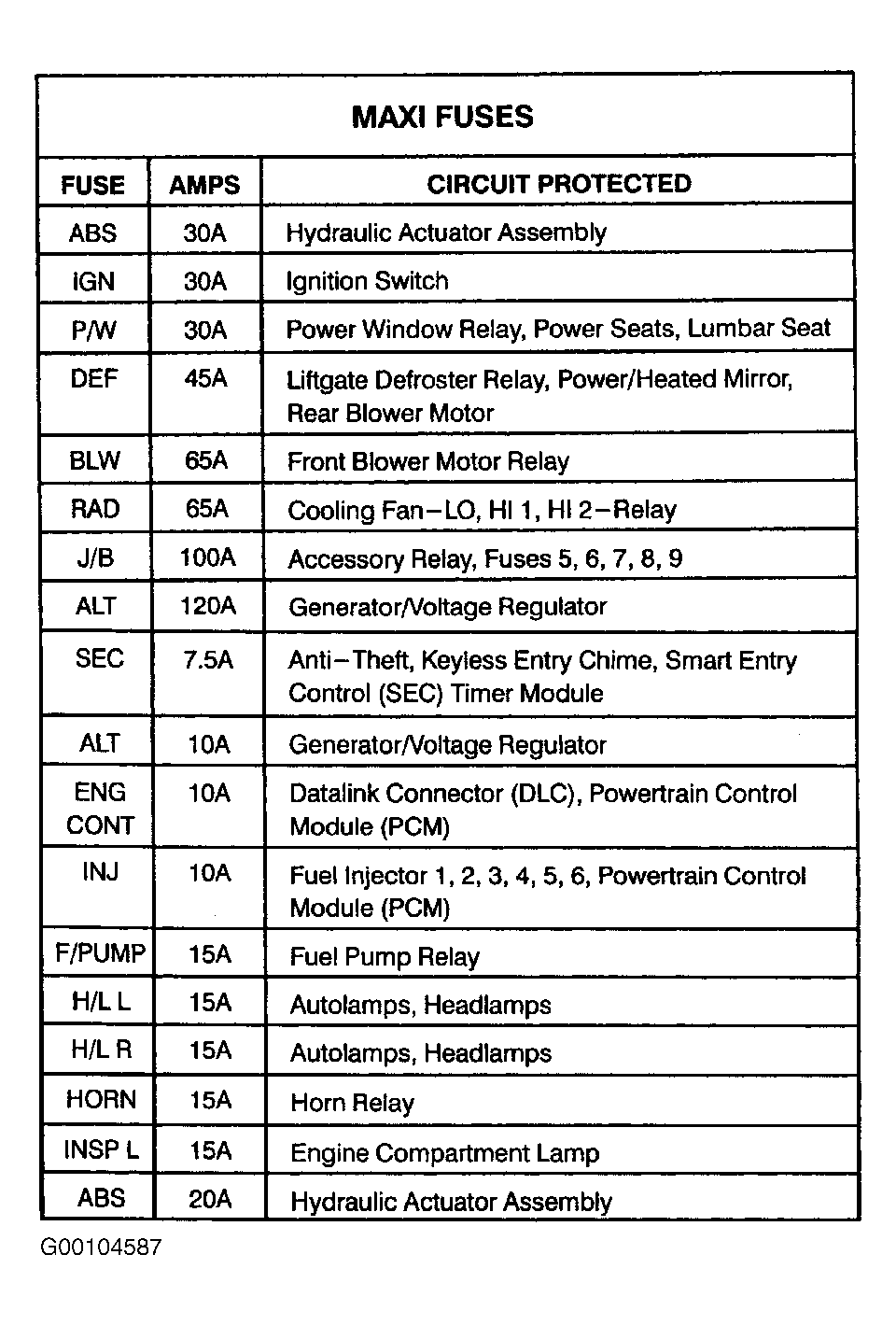

Fig 3: Engine Compartment Fuse/Relay Panel Legend

Courtesy of FORD MOTOR CO.
