Wiring Diagrams

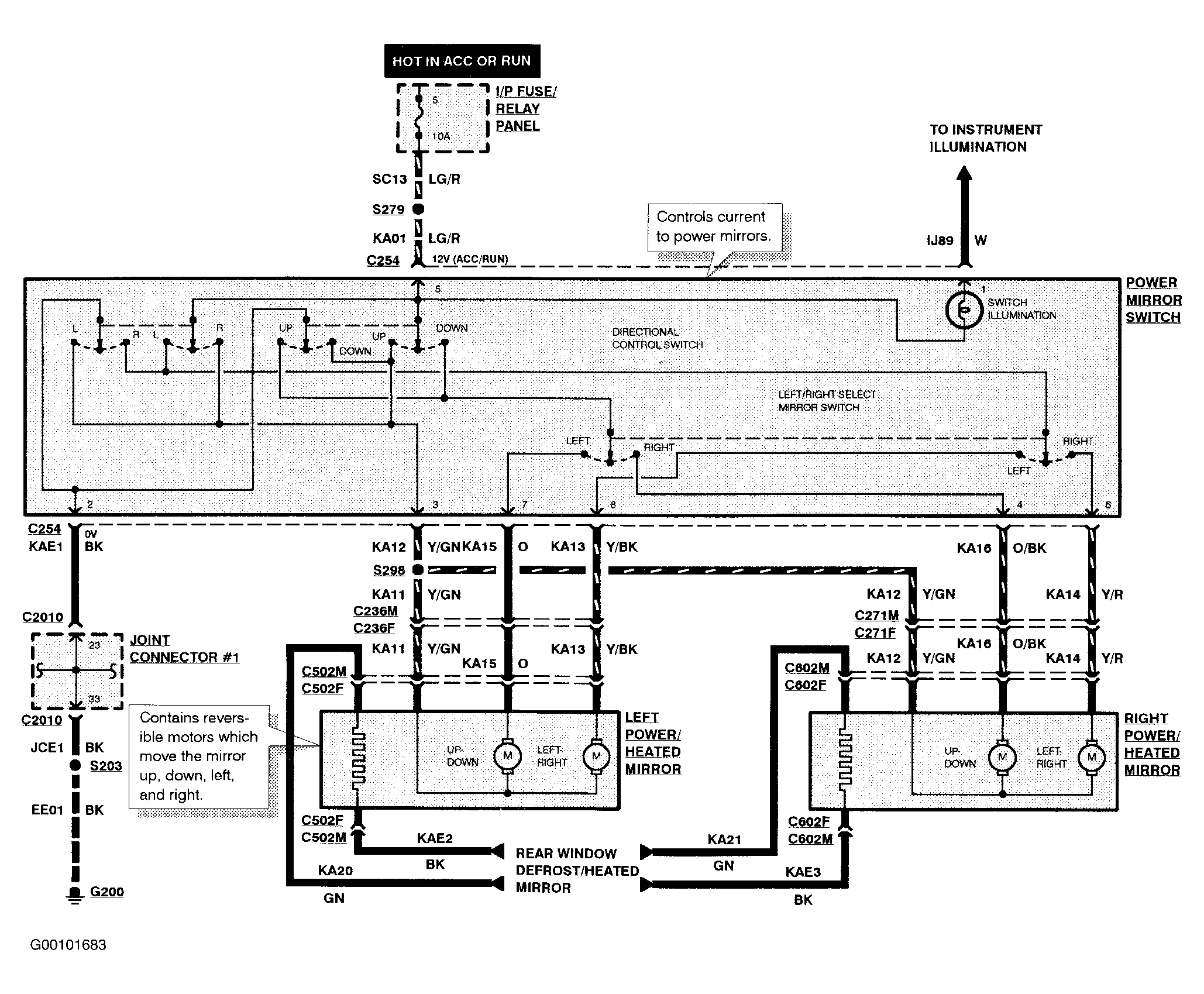

Fig 1: Villager Wiring Diagram (1 Of 2)
G00101683Courtesy of FORD MOTOR CO.

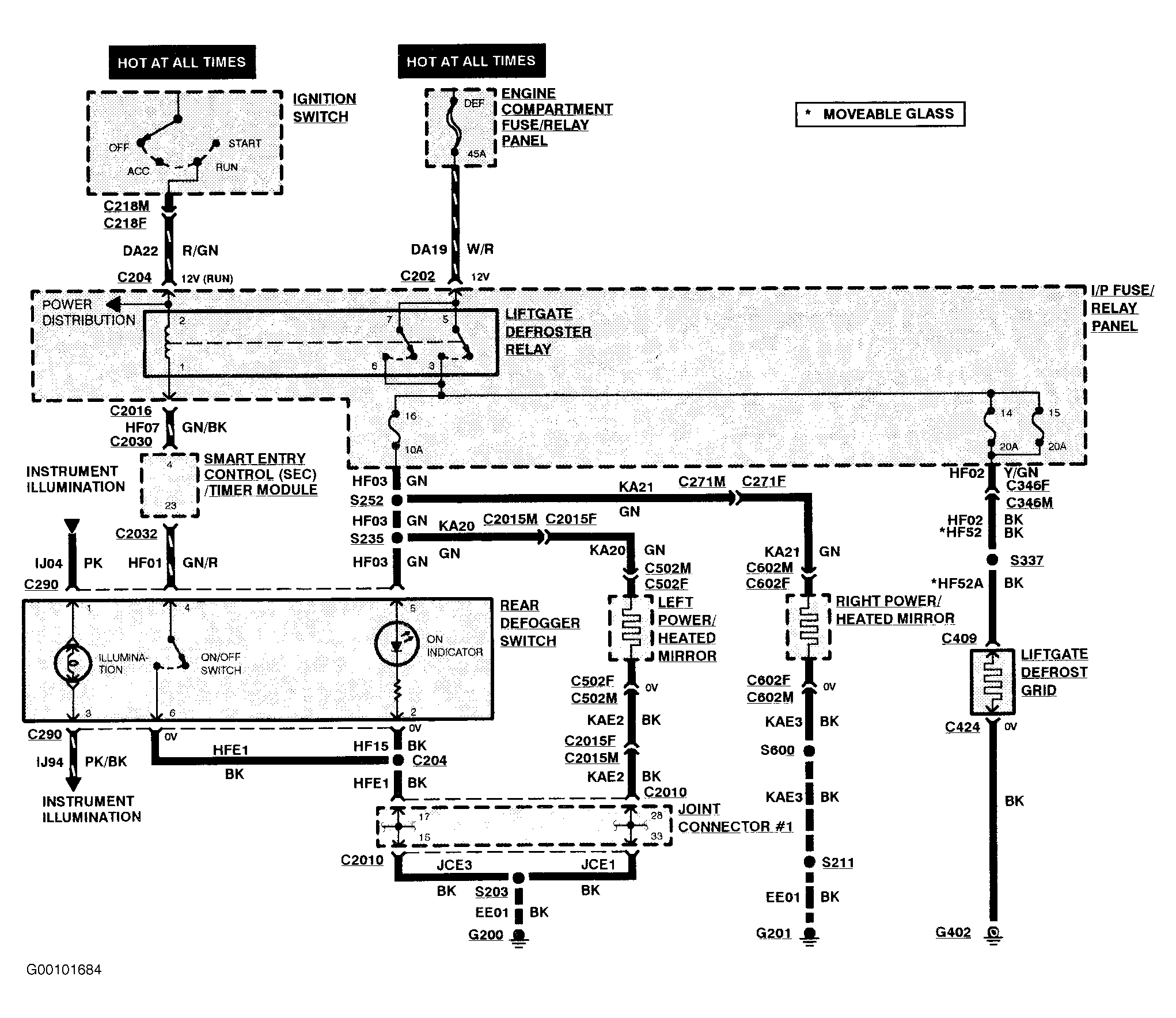

Fig 2: Villager Wiring Diagram (2 Of 2)
G00101684Courtesy of FORD MOTOR CO.

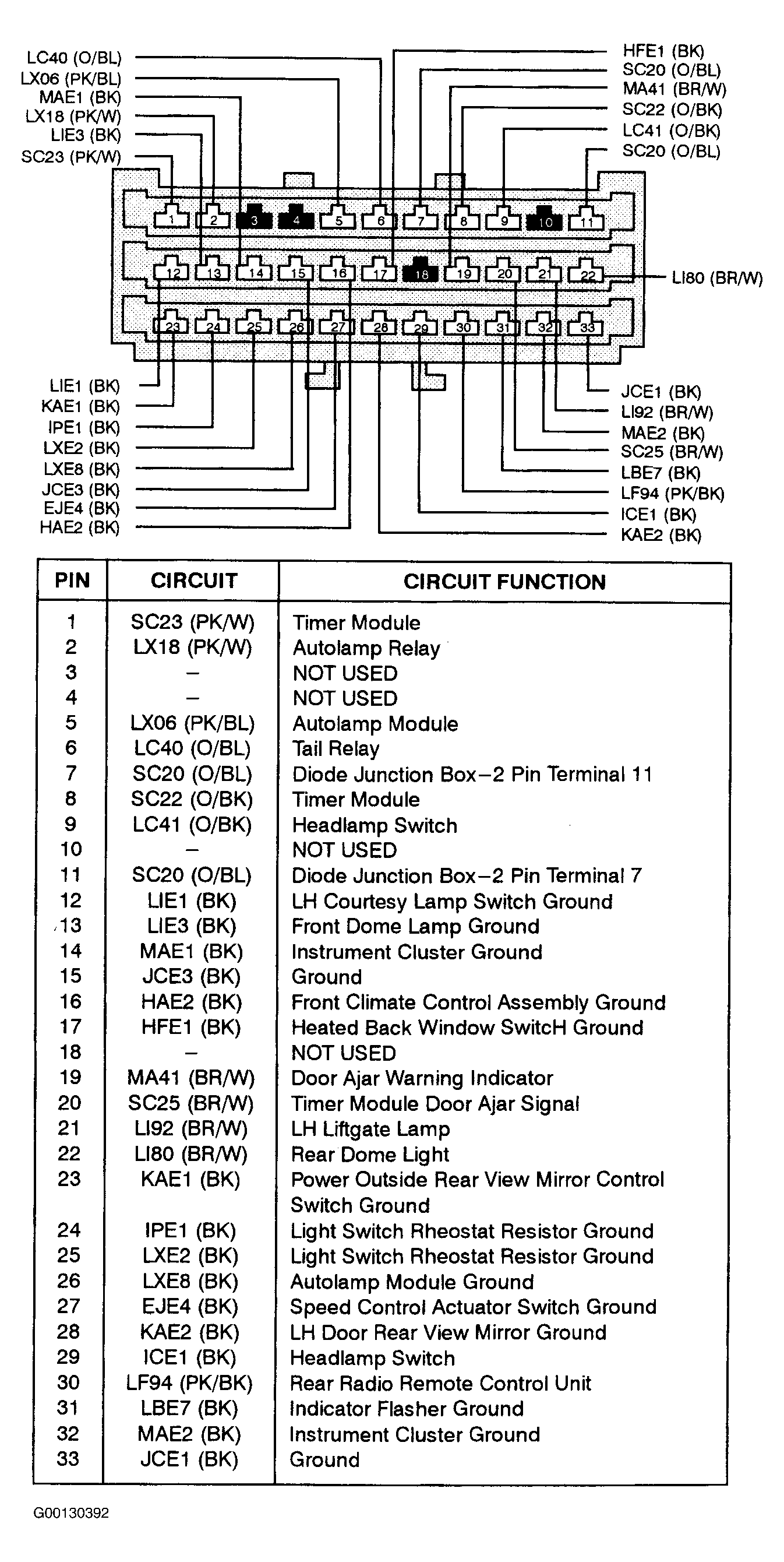

Fig 3: Joint Connector No. 1 Terminal Identification
G00130392Courtesy of FORD MOTOR CO.
