Steering Knuckle/Dust Shield Assembly: Reassembly

Position Anti-Lock Sensing Ring Remover T85P-20202-A on the dust shield and Dust Shield Replacer T87C-1175-B under the steering knuckle. See Fig 1 . Use a press to press the dust shield onto the steering knuckle.

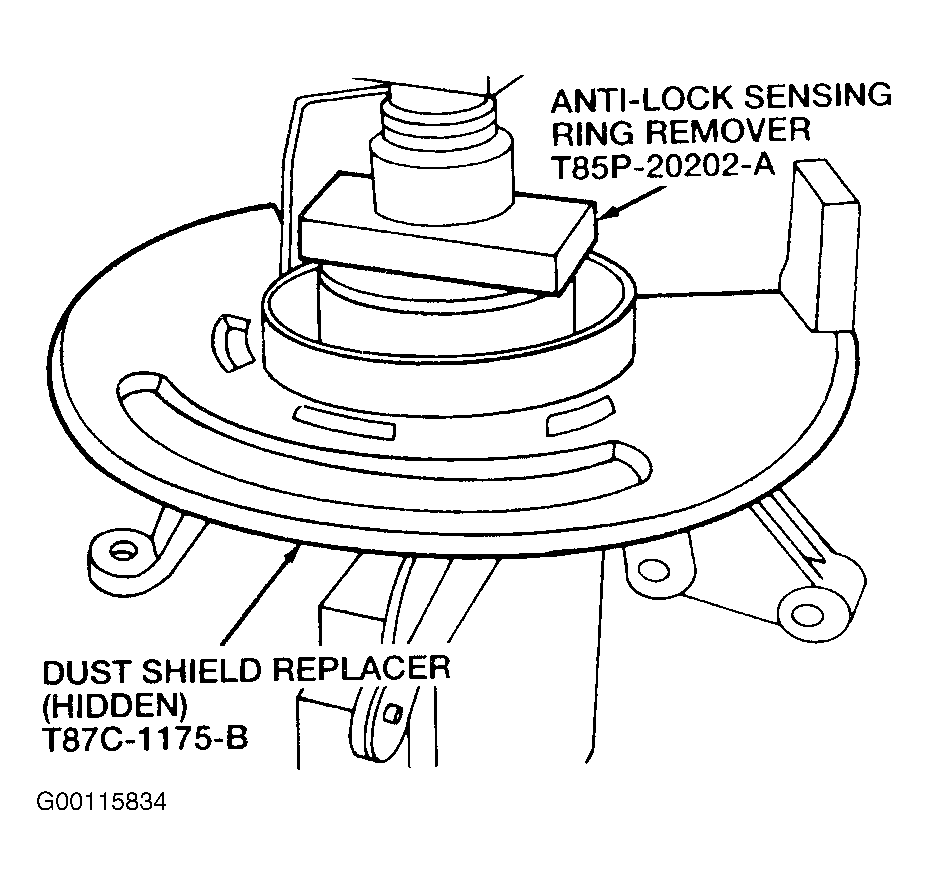

Fig 1: Positioning Anti-Lock Sensing Ring Remover & Dust Shield Replacer

Courtesy of FORD MOTOR CO.
