Hub/Bearing Assembly: Reassembly

  1. Position Pinion Bearing Cup Replacer T80T-4000-E on the wheel bearing and Dust Shield Replacer T87C-1175-B under the hub. See Fig 1 . Use a press to press the wheel bearing onto the hub.
  2. Assemble the steering knuckle/wheel hub assembly. See STEERING KNUCKLE/WHEEL HUB ASSEMBLY  .

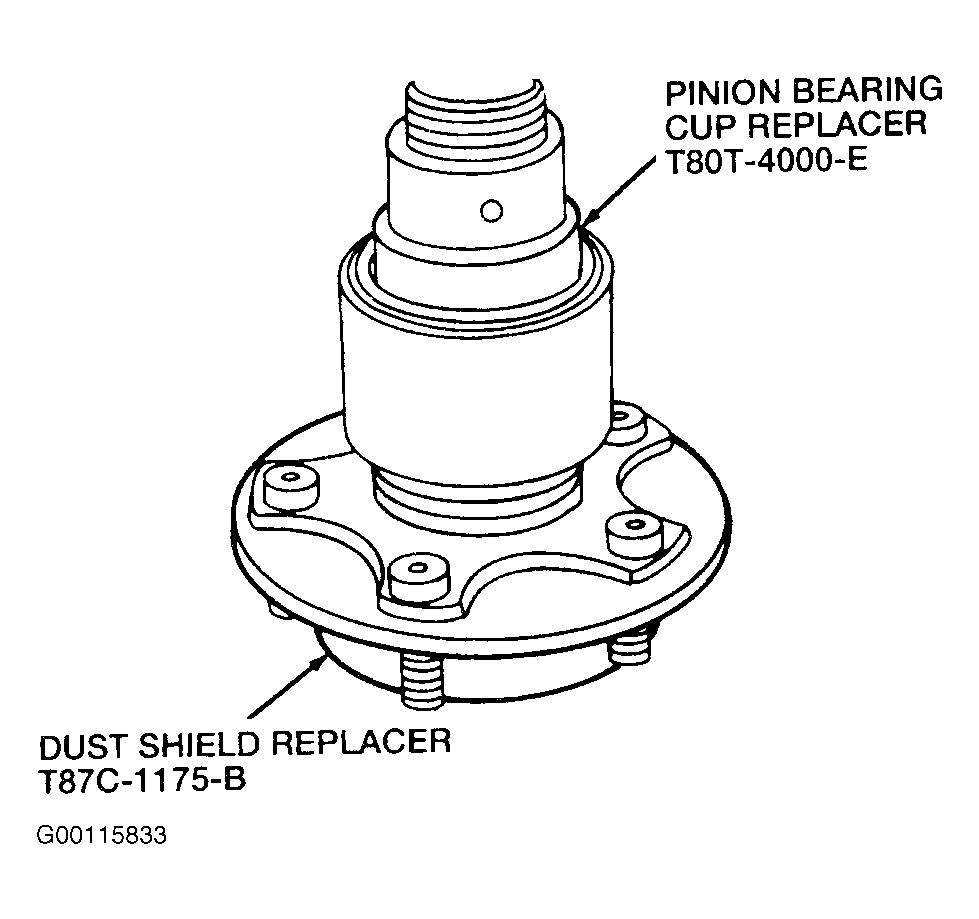

Fig 1: Installing Wheel Bearing
G00115833Courtesy of FORD MOTOR CO.
