Restraints
>>
Passive Restraints
>>
Passive Restraint Systems - Seat Belts
>>
Removal & Installation
>>
Passive Restraint Control Module
Passive Restraint Control Module

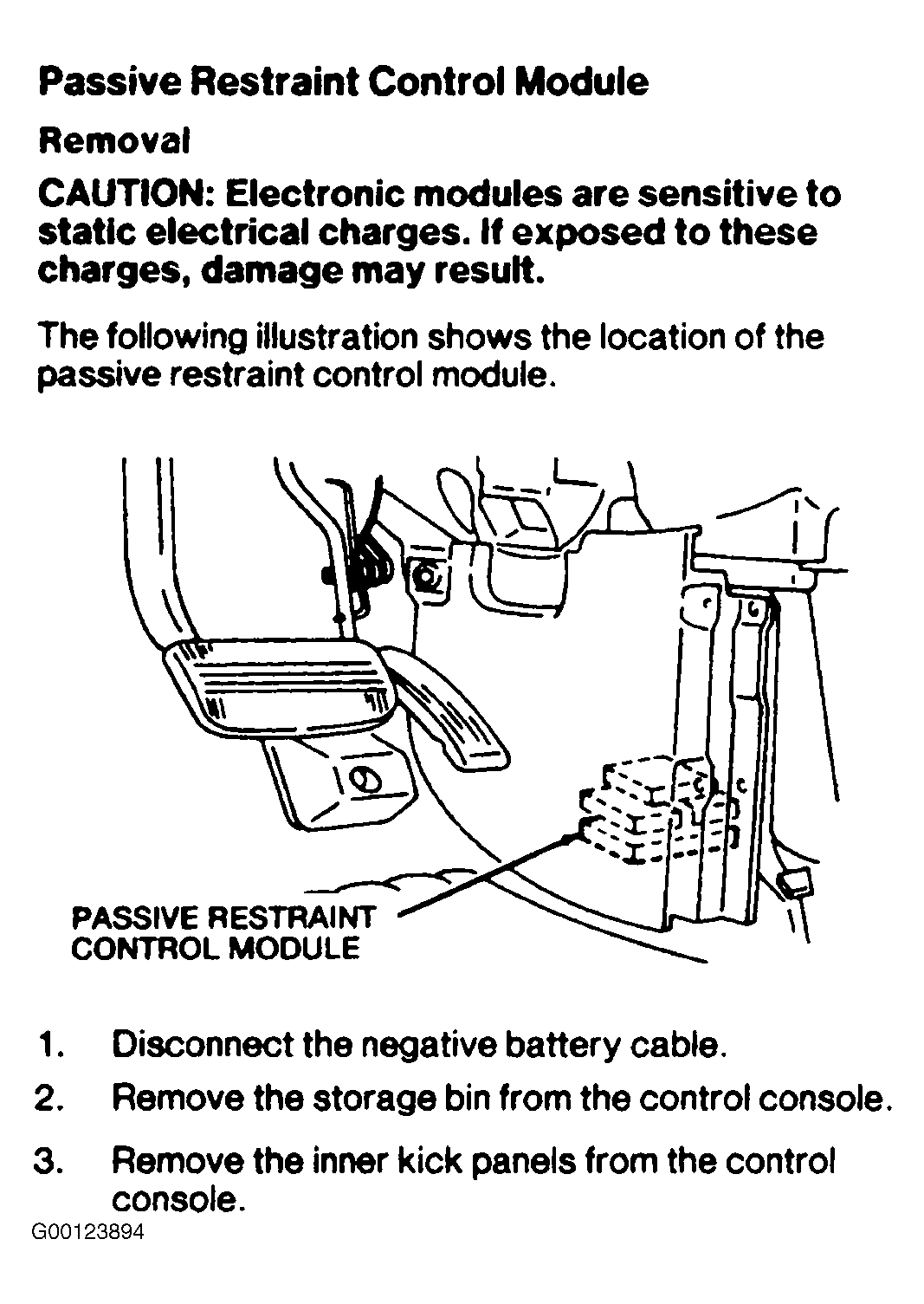

Fig 1: Removing Passive Restraint Control Module (1 Of 2)
Courtesy of FORD MOTOR CO.

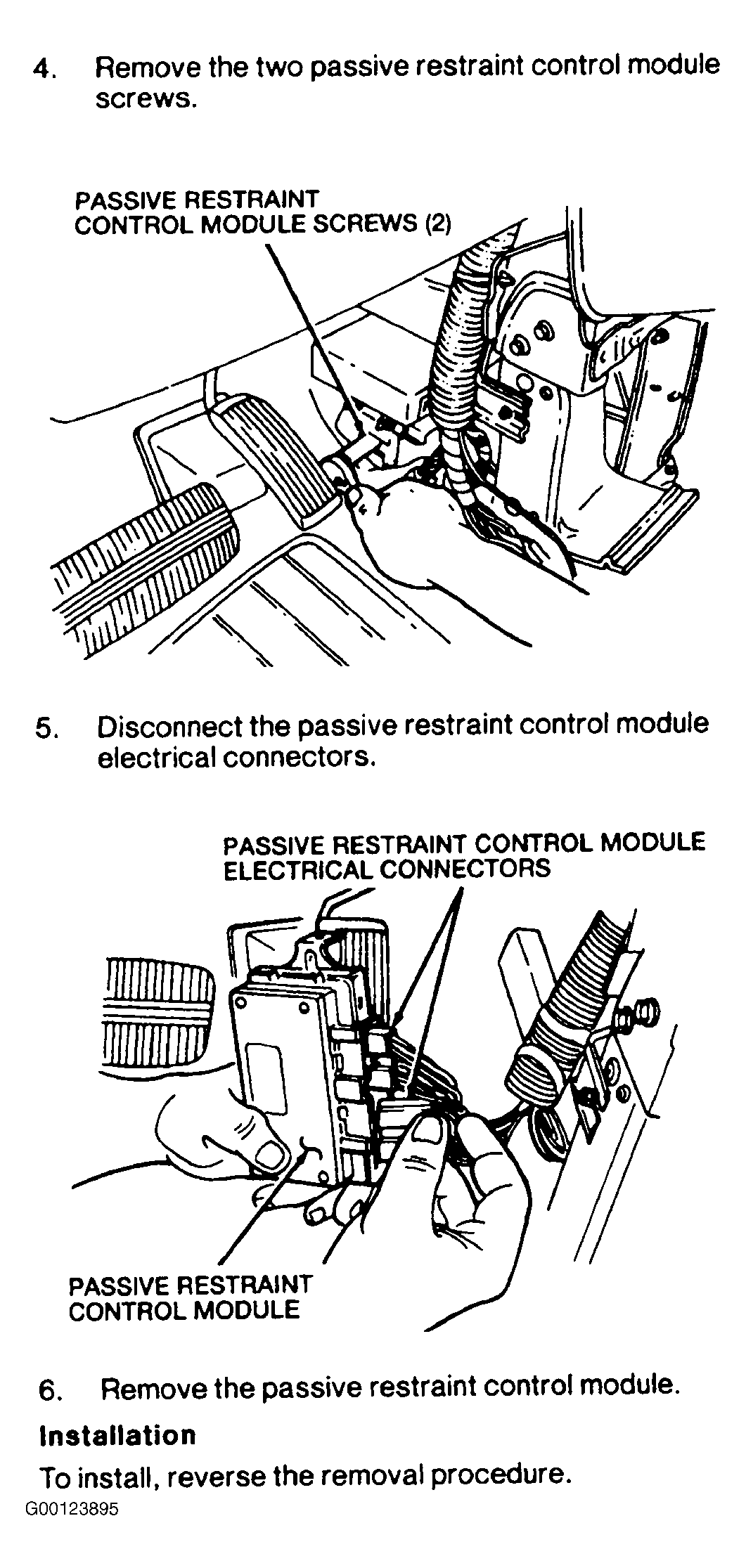

Fig 2: Removing Passive Restraint Control Module (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
