Fuel Level Sending Unit / Sensor: Installation

WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
  1. Noting their previous positions, connect wires from 2-wire harness into its connector.
  2. Plug 2-wire harness connector into pump module electrical connector.
  3. Position sending unit (4) (Fig 1 ) to tracks on fuel pump module. Slide and snap into place.

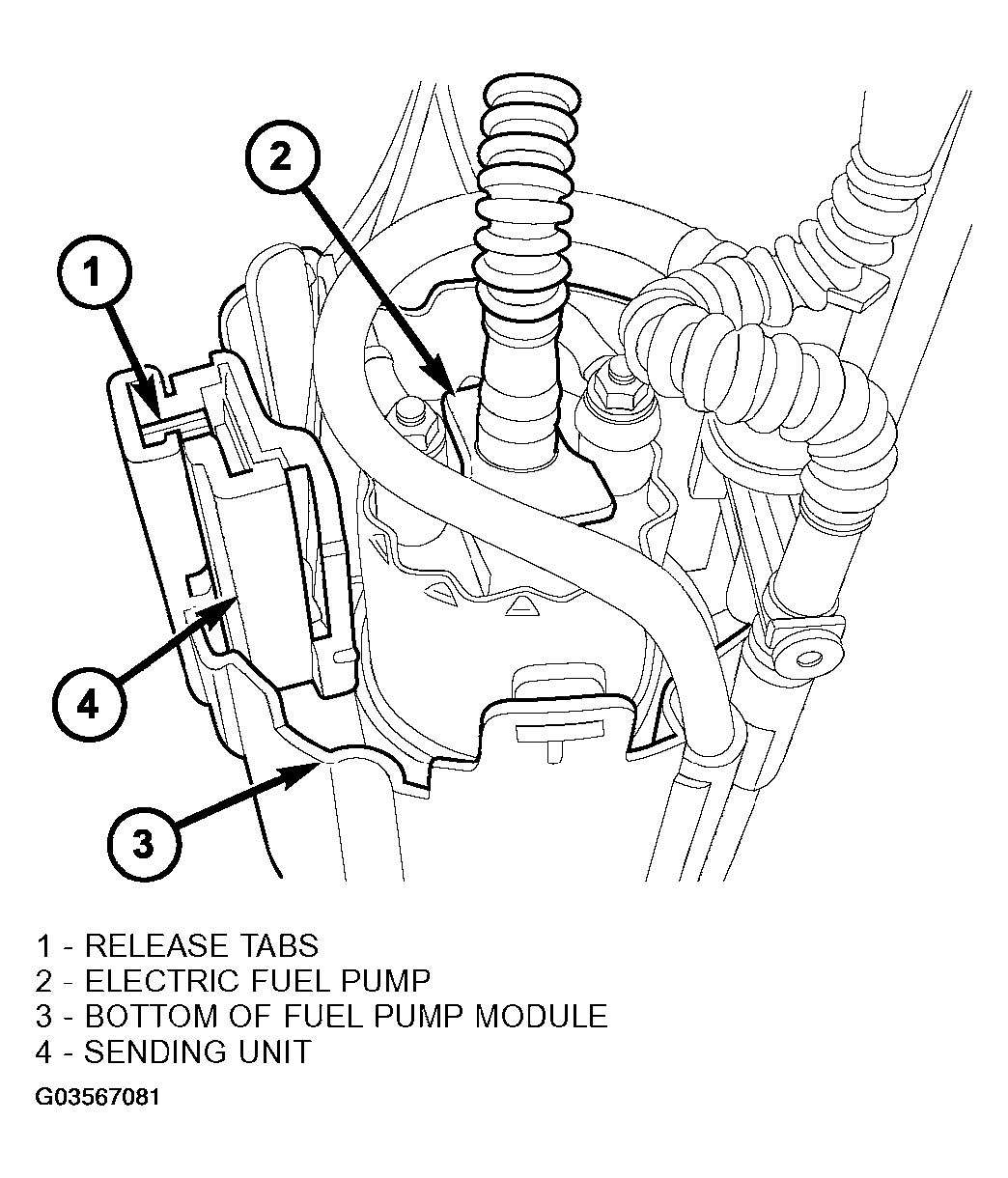

    Fig 1: Positioning Sending Unit To Tracks On Fuel Pump Module
    G03567081Courtesy of DAIMLERCHRYSLER CORP.
  4. Install fuel pump module. Refer to REMOVAL  /INSTALLATION  .
