Rear Quarter Glass

  1. Remove rear quarter trim. See REAR QUARTER TRIM  under REMOVAL & INSTALLATION.
  2. Loosen the two power rear quarter glass latch regulator bolts. See Fig 1 .
  3. Loosen the two rear quarter glass hinge nuts. See Fig 2 .
  4. Adjust the rear quarter glass. See Fig 3 .
  5. While holding the rear quarter glass have an assistant tighten the two rear quarter glass hinge nuts to 2.8-3.3 INCH lbs. (3.8-4.5 N.m).
  6. Tighten the two rear quarter glass latch bolts to 2.8-3.3 INCH lbs. (3.8-4.5 N.m).
  7. Tighten the power window rear quarter glass latch regulator bolts to 2.8-3.3 INCH lbs. (3.8-4.5 N.m).
  8. Install the rear quarter trim. See REAR QUARTER TRIM  under REMOVAL & INSTALLATION.

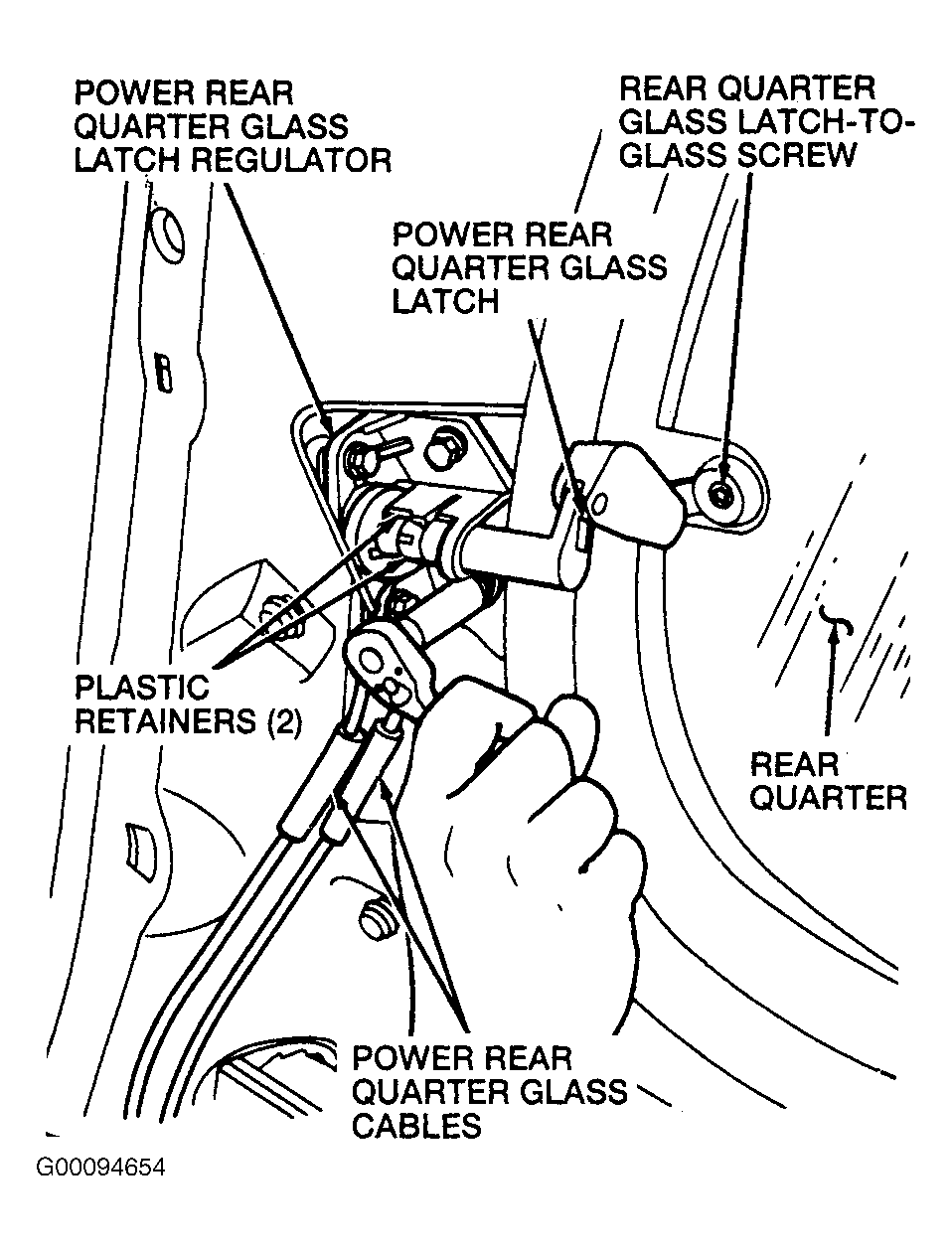

Fig 1: Locating Rear Quarter Glass Regulator Bolts
G00097654Courtesy of FORD MOTOR CO.

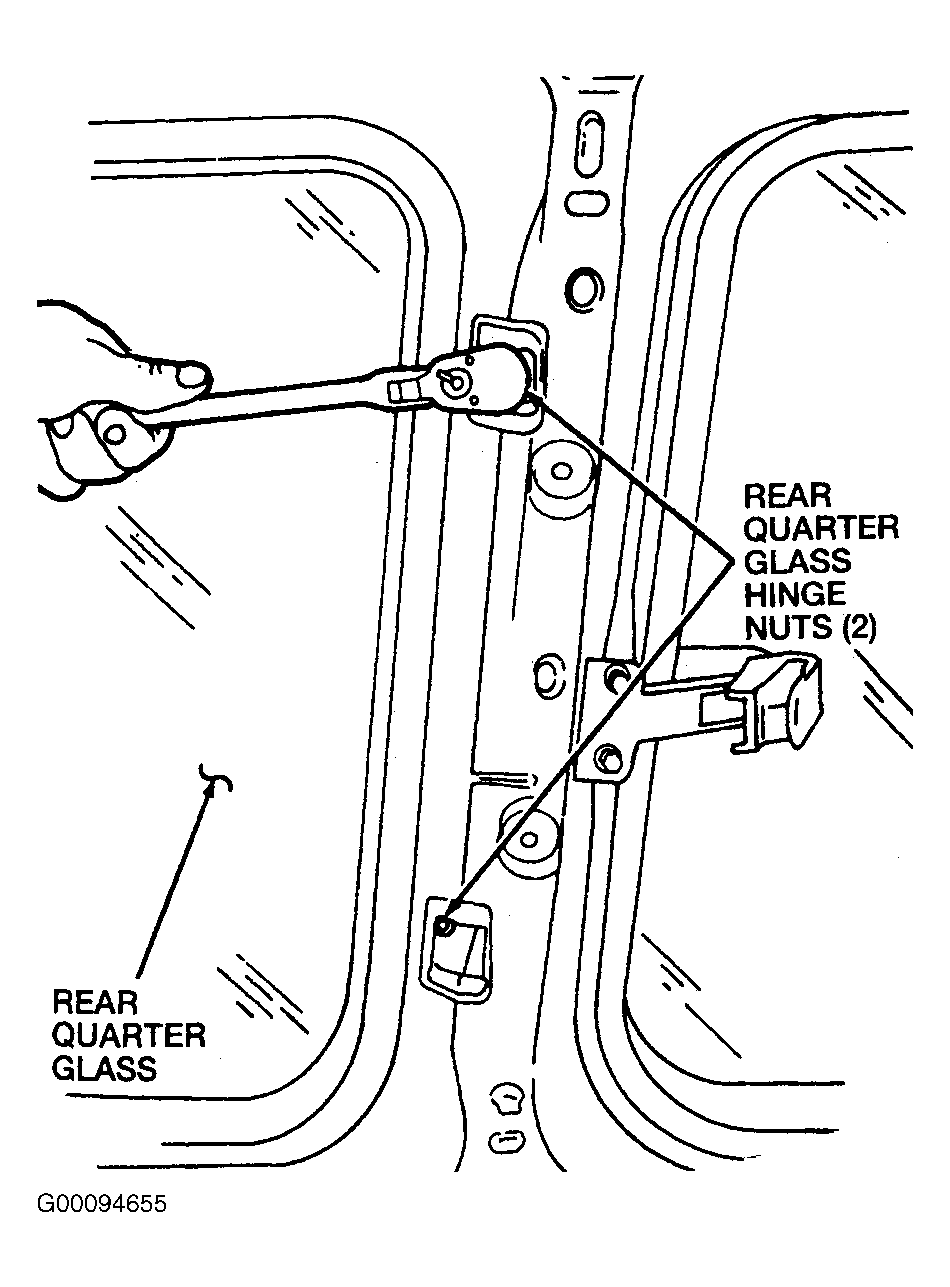

Fig 2: Locating Rear Quarter Glass Hinge Nuts
G00097655Courtesy of FORD MOTOR CO.

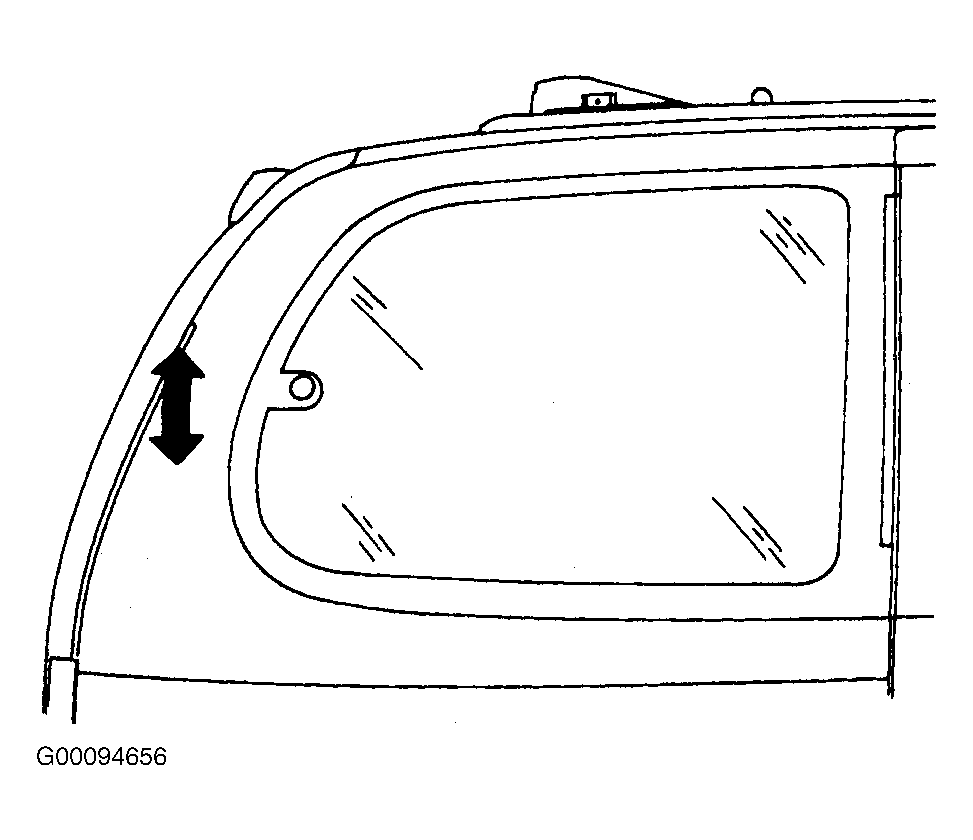

Fig 3: Adjusting Rear Quarter Glass
G00097656Courtesy of FORD MOTOR CO.
